Murata Electronics LXES03TAA1-142

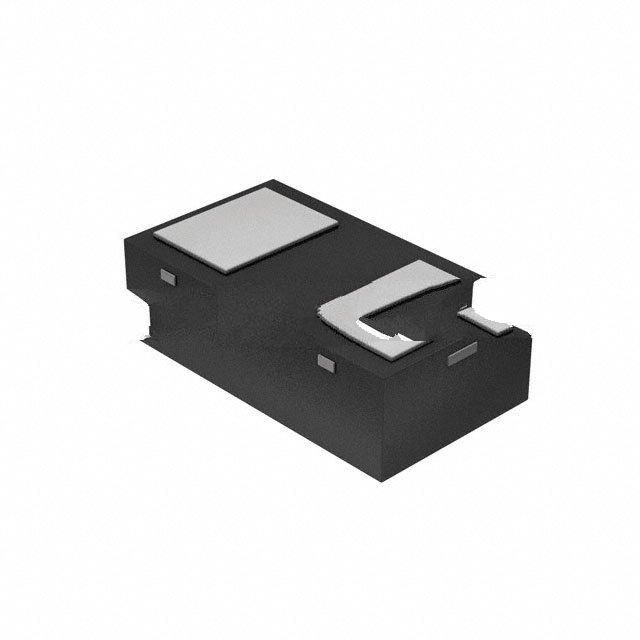

The picture is for reference only, please refer to the product specification
- LXES03TAA1-142
- Murata Electronics
- TVS DIODE 5VWM SMD
- TVS - Diodes
- LXES03TAA1-142 Datasheet
- 0201 (0603 Metric)
- 0201 (0603 Metric)
-
Lead free / RoHS Compliant - 2785
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is LXES03TAA1-142
Murata Electronics Part Number LXES03TAA1-142（TVS - Diodes）, developed and manufactured by Murata Electronics, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
LXES03TAA1-142 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
LXES03TAA1-142 Specifications
- Part NumberLXES03TAA1-142
- CategoryTVS - Diodes
- ManufacturerMurata Electronics
- DescriptionTVS DIODE 5VWM SMD
- Package0201 (0603 Metric)
- Series-
- TypeZener
- Operating Temperature-40°C ~ 85°C (TA)
- Mounting TypeSurface Mount
- Package / Case0201 (0603 Metric)
- Supplier Device Package2-CSP (0.60x0.30)
- ApplicationsEthernet, HDMI
- Voltage - Reverse Standoff (Typ)5V (Max)
- Voltage - Breakdown (Min)7V
- Power Line ProtectionNo
- Bidirectional Channels1
- Capacitance @ Frequency5pF @ 1MHz
Application of LXES03TAA1-142
LXES03TAA1-142 Datasheet
LXES03TAA1-142 Datasheet , 0201 (0603 Metric),Zener,-40°C ~ 85°C (TA),Surface Mount,0201 (0603 Metric),2-CSP (0.60x0.30),Ethernet, HDMI,5V (Max),7V,No,1,5pF @ 1MHz
LXES03TAA1-142 Classification
TVS - Diodes
FAQ about TVS - Diodes
-
1. TVS is the abbreviation of diode. What does it mean?
TVS is the abbreviation of Transient Voltage Suppressor, also known as Transient Voltage Suppression Diode.
How TVS diodes work
TVS diodes work using the avalanche breakdown effect. When the TVS diode receives a reverse voltage, the depletion layer near its PN junction will increase, causing the electric field intensity to increase, which in turn triggers the avalanche effect and causes the reverse current to increase sharply. Unlike ordinary diodes, TVS diodes can recover after avalanche breakdown and continue to work normally. -
2. Are TVS diodes and Zener diodes the same?
TVS diodes and Zener diodes have significant differences in functionality and characteristics, so they are not identical.
Definition and purpose
Zener diode: Zener diode is a diode that uses a PN junction for reverse breakdown. It is mainly used to ensure voltage stability. It has a high resistance state before the reverse breakdown voltage and is in a low resistance state after exceeding this critical point. It is widely used in various voltage stabilizing circuits and reference voltage components.
TVS Diode: TVS diode (Transient Suppression Diode) has surge absorption capability and is mainly used to protect circuits from damage caused by transient high voltages such as surges and electrostatic discharge (ESD). It can absorb a large amount of instantaneous current and voltage in a short period of time, protecting the subsequent equipment or circuits from damage.
-
3. How do TVS diodes fail?
The failure modes of TVS diodes mainly include short circuit failure, open circuit failure and performance degradation. These failure modes can have a serious impact on the normal operation and protection functions of the circuit.
short circuit fault
Short circuit failure is one of the most common failure modes of TVS diodes. When a TVS diode is short-circuited, it changes to a low-impedance state, allowing a large amount of current to pass through, which may cause the circuit to not function properly and may even damage other circuit components. Causes of short circuit faults include:
Thermal breakdown: In a high temperature environment or when subjected to excessive transient energy impact, the PN junction of the TVS diode may undergo thermal breakdown, resulting in a short circuit.
Over-electrical stress: When the transient pulse energy exceeds the energy that the TVS can withstand, it will cause over-electrical stress damage and even directly cause burnout.
Manufacturing process issues: Such as chip bonding interface voids, mesa defects, strong accumulation layer or strong inversion layer on the surface, chip cracks, uneven impurity diffusion, etc., which may cause short circuit failures of TVS diodes during manufacturing or use.
