National Semiconductor MAX3318CPWR

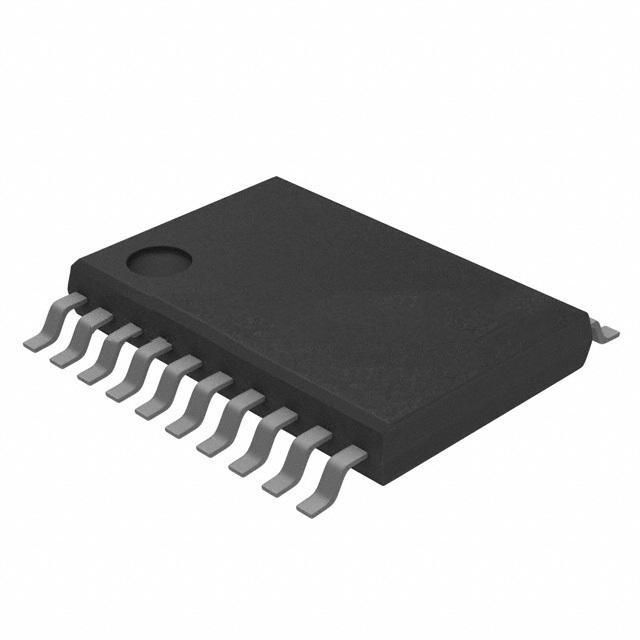

The picture is for reference only, please refer to the product specification
- MAX3318CPWR
- National Semiconductor
- IC TRANSCEIVER FULL 2/2 20TSSOP
- Interface - Drivers, Receivers, Transceivers
- MAX3318CPWR Datasheet
- 20-TSSOP (0.173\", 4.40mm Width)
- Bulk
-
Lead free / RoHS Compliant - 21212
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is MAX3318CPWR
National Semiconductor Part Number MAX3318CPWR（Interface - Drivers, Receivers, Transceivers）, developed and manufactured by National Semiconductor, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
MAX3318CPWR is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
MAX3318CPWR Specifications
- Part NumberMAX3318CPWR
- CategoryInterface - Drivers, Receivers, Transceivers
- ManufacturerNational Semiconductor
- DescriptionIC TRANSCEIVER FULL 2/2 20TSSOP
- PackageBulk
- Series-
- TypeTransceiver
- Voltage - Supply2.25V ~ 3V
- Operating Temperature0°C ~ 70°C
- Mounting TypeSurface Mount
- Package / Case20-TSSOP (0.173\", 4.40mm Width)
- Supplier Device Package20-TSSOP
- ProtocolRS232
- Data Rate460Kbps
- Number of Drivers/Receivers2/2
- Receiver Hysteresis300 mV
- DuplexFull
Application of MAX3318CPWR
MAX3318CPWR Datasheet
MAX3318CPWR Datasheet , Bulk,Transceiver,2.25V ~ 3V,0°C ~ 70°C,Surface Mount,20-TSSOP (0.173\", 4.40mm Width),20-TSSOP,RS232,460Kbps,2/2,300 mV,Full
MAX3318CPWR Classification
Interface - Drivers, Receivers, Transceivers
FAQ about Interface - Drivers, Receivers, Transceivers
-
1. What is an IC driver?
An IC driver is an integrated circuit that is mainly used to control and drive various devices, such as LCDs, motors, etc. It integrates the circuits that drive and control these devices, making the entire circuit design more concise and reducing the risk of overcurrent and overheating.
The role of the IC driver is to convert the signal from the host or controller into the signal required by the peripheral or sensor so that it can work properly. Depending on the function, the driver chip can be divided into many types, such as motor driver IC, LCD driver IC, etc. -
2. What is an interface IC?
An interface IC is a chip with an internal interface circuit, which is mainly used for connection and data exchange between the CPU and external devices and memory. The interface IC coordinates the differences in speed, type, timing, etc. between the CPU and external devices through internally set registers, buffer logic, information format conversion and other functions to ensure accurate and efficient data transmission.
The main functions of the interface IC include:
Setting data storage and buffering logic: adapting to the speed difference between the CPU and external devices, and performing batch data transmission through registers or RAM chips.
Information format conversion: such as serial and parallel conversion, adapting to different data transmission requirements.
Coordinating timing differences: ensuring the synchronization of the CPU and external devices in timing.
Address decoding and selection: realizing the selection and control of peripherals.
Setting interrupt and DMA control logic: ensuring the correct processing and transmission of interrupt and DMA request signals.
Interface ICs are widely used in various electronic devices, such as smart homes, industrial automation, computer systems, etc. For example, Type-C interface chips are used to implement Type-C interface functions, supporting high-speed data transmission and power transmission; RS-485 interface chips are used in industrial automation and control systems, supporting multi-point differential signal transmission. -
3. What is a transceiver IC?
A transceiver IC is an integrated circuit that is mainly used to realize the sending and receiving functions of signals. It can be used in different communication systems. According to the specific application scenario, the transceiver IC can realize the conversion between electrical signals and optical signals and radio frequency signals.
The specific types of transceiver ICs include optical transceiver chips and radio frequency transceiver chips. Optical transceiver chips are mainly used in optical fiber communication systems to realize the conversion between optical signals and electrical signals. They are the basic chips of the physical layer of optical fiber broadband networks. Radio frequency transceiver chips are used in radio communications. As a "translator" between radio waves and digital signals, they realize the conversion between baseband signals and radio frequency signals. They are widely used in 5G base stations, industrial Internet, Internet of Vehicles and other fields.
