MUR410G

ON Semiconductor MUR410G

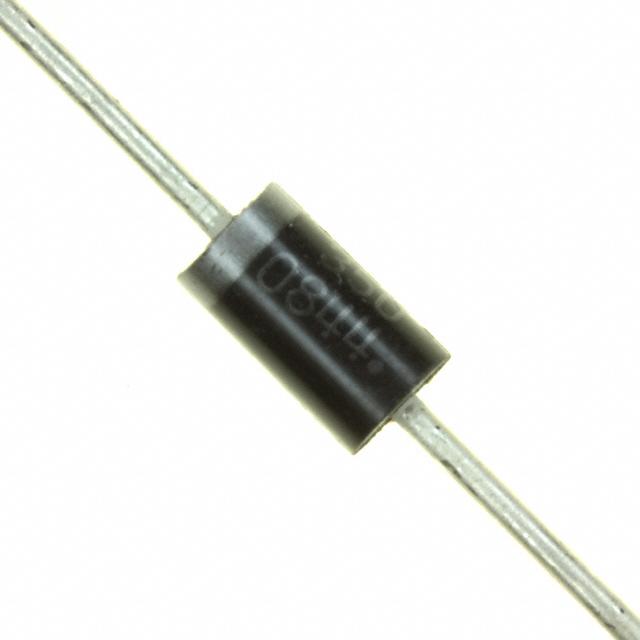

The picture is for reference only, please refer to the product specification

  • MUR410G
  • ON Semiconductor
  • DIODE GEN PURP 100V 4A DO201AD
  • Diodes - Rectifiers - Single
  • MUR410G Datasheet
  • DO-201AA, DO-27, Axial
  • -Reel®
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 3458
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is MUR410G

ON Semiconductor Part Number MUR410G（Diodes - Rectifiers - Single）, developed and manufactured by ON Semiconductor, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

MUR410G is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

MUR410G Specifications

  • Part NumberMUR410G
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerON Semiconductor
  • DescriptionDIODE GEN PURP 100V 4A DO201AD
  • Package-Reel®
  • SeriesSWITCHMODE™
  • Mounting TypeThrough Hole
  • Package / CaseDO-201AA, DO-27, Axial
  • Supplier Device PackageAxial
  • Diode TypeStandard
  • Current - Average Rectified (Io)4A
  • Voltage - Forward (Vf) (Max) @ If890 mV @ 4 A
  • Current - Reverse Leakage @ Vr5 µA @ 100 V
  • Capacitance @ Vr, F-
  • Voltage - DC Reverse (Vr) (Max)100 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)35 ns
  • Operating Temperature - Junction-65°C ~ 175°C

Application of MUR410G

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

MUR410G Datasheet

MUR410G Datasheet , -Reel®,SWITCHMODE™,Through Hole,DO-201AA, DO-27, Axial,Axial,Standard,4A,890 mV @ 4 A,5 µA @ 100 V,100 V,Fast Recovery =< 500ns, > 200mA (Io),35 ns,-65°C ~ 175°C

MUR410G Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.

FAQ about Diodes - Rectifiers - Single

  • 1. What is forward voltage drop?

    Forward voltage drop refers to the voltage drop generated when the current passes through a diode when it is conducting. The forward voltage drop of silicon rectifier diodes is usually around 0.7V, while the forward voltage drop of Schottky diodes is usually lower, between 0.2V and 0.3V.

  • 2. What is the maximum reverse voltage (PIV) of a rectifier diode?

    The Peak Inverse Voltage (PIV) is the maximum reverse voltage that a diode can withstand. When selecting a diode, the PIV must be higher than the maximum reverse voltage in the circuit, usually twice or more the input voltage.

  • 3. What is the difference between a single rectifier diode and a bridge rectifier?

    A single rectifier diode can only rectify the positive half wave of AC power (half wave rectification), while a bridge rectifier composed of four diodes can rectify the positive and negative half waves of AC power (full wave rectification), with higher efficiency and smoother output.
