PMEG45T15EPDAZ

Nexperia USA Inc. PMEG45T15EPDAZ

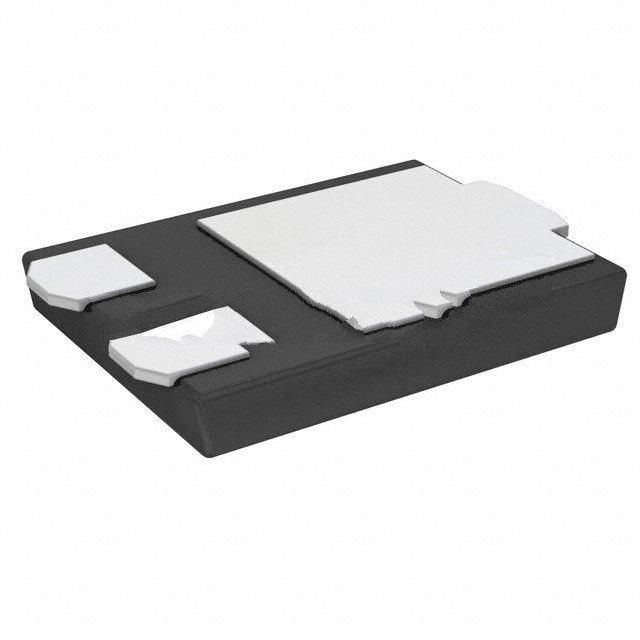

The picture is for reference only, please refer to the product specification

  • PMEG45T15EPDAZ
  • Nexperia USA Inc.
  • DIODE SCHOTTKY 45V 15A CFP15
  • Diodes - Rectifiers - Single
  • PMEG45T15EPDAZ Datasheet
  • TO-277, 3-PowerDFN
  • -Reel®
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 12797
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is PMEG45T15EPDAZ

Nexperia USA Inc. Part Number PMEG45T15EPDAZ（Diodes - Rectifiers - Single）, developed and manufactured by Nexperia USA Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

PMEG45T15EPDAZ is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

PMEG45T15EPDAZ Specifications

  • Part NumberPMEG45T15EPDAZ
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerNexperia USA Inc.
  • DescriptionDIODE SCHOTTKY 45V 15A CFP15
  • Package-Reel®
  • Series-
  • Mounting TypeSurface Mount
  • Package / CaseTO-277, 3-PowerDFN
  • Supplier Device PackageCFP15
  • Diode TypeSchottky
  • Current - Average Rectified (Io)15A
  • Voltage - Forward (Vf) (Max) @ If580 mV @ 15 A
  • Current - Reverse Leakage @ Vr100 µA @ 45 V
  • Capacitance @ Vr, F2200pF @ 1V, 1MHz
  • Voltage - DC Reverse (Vr) (Max)45 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)20 ns
  • Operating Temperature - Junction150°C (Max)

Application of PMEG45T15EPDAZ

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

PMEG45T15EPDAZ Datasheet

PMEG45T15EPDAZ Datasheet , -Reel®,Surface Mount,TO-277, 3-PowerDFN,CFP15,Schottky,15A,580 mV @ 15 A,100 µA @ 45 V,2200pF @ 1V, 1MHz,45 V,Fast Recovery =< 500ns, > 200mA (Io),20 ns,150°C (Max)

PMEG45T15EPDAZ Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.
