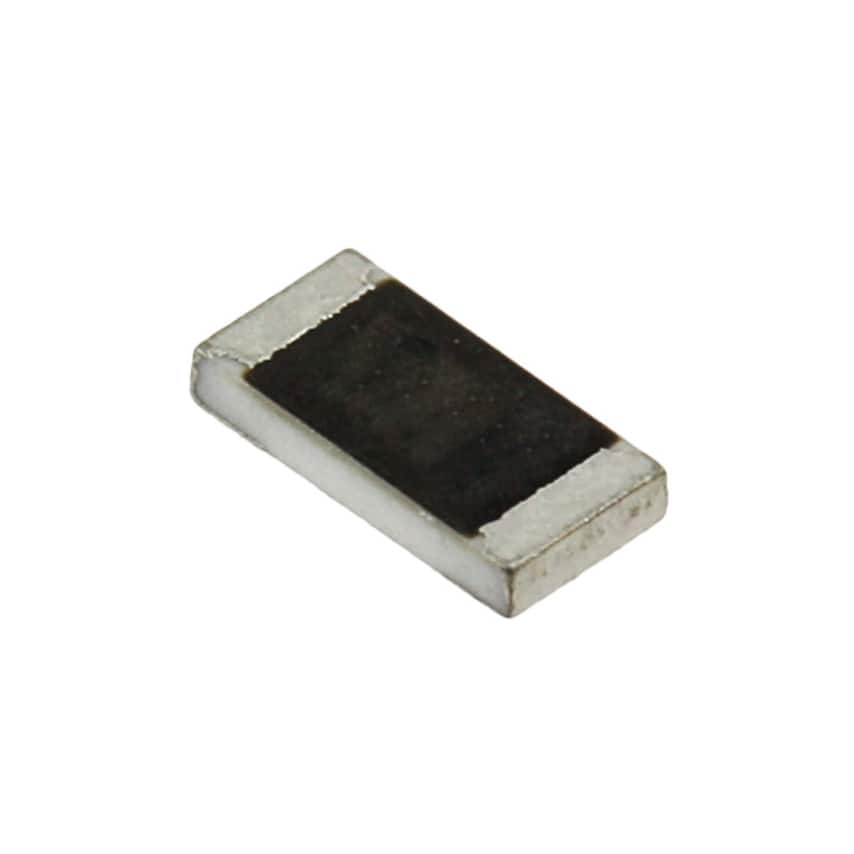

The picture is for reference only, please refer to the product specification
- RN732BTTD11R7F50
- KOA Speer Electronics, Inc.
- RES 11.7 OHM 1% 1/8W 1206
- Chip Resistor - Surface Mount
- RN732BTTD11R7F50 Datasheet
- 1206 (3216 Metric)
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 25738
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RN732BTTD11R7F50
KOA Speer Electronics, Inc. Part Number RN732BTTD11R7F50（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RN732BTTD11R7F50 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RN732BTTD11R7F50 Specifications
- Part NumberRN732BTTD11R7F50
- CategoryChip Resistor - Surface Mount
- ManufacturerKOA Speer Electronics, Inc.
- DescriptionRES 11.7 OHM 1% 1/8W 1206
- PackageTape & Reel (TR)
- SeriesRN73
- FeaturesMoisture Resistant
- Operating Temperature-55°C ~ 155°C
- Package / Case1206 (3216 Metric)
- Supplier Device Package1206
- Tolerance±1%
- Temperature Coefficient±50ppm/°C
- Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm)
- Power (Watts)0.125W, 1/8W
- Ratings-
- Height - Seated (Max)0.028\" (0.70mm)
- Failure Rate-
- Resistance11.7 Ohms
- CompositionThin Film
- Number of Terminations2
Application of RN732BTTD11R7F50
RN732BTTD11R7F50 Datasheet
RN732BTTD11R7F50 Datasheet , Tape & Reel (TR),RN73,Moisture Resistant,-55°C ~ 155°C,1206 (3216 Metric),1206,±1%,±50ppm/°C,0.126" L x 0.063" W (3.20mm x 1.60mm),0.125W, 1/8W,0.028\" (0.70mm),11.7 Ohms,Thin Film,2
RN732BTTD11R7F50 Classification
Chip Resistor - Surface Mount
FAQ about Chip Resistor - Surface Mount
-
1. What are the functions of chip fixed resistors?
Chip fixed resistors (chip resistors) play a vital role in electronic devices and systems.
Chip fixed resistors, also known as Chip Resistor, are one of the passive electronic components widely used in the modern electronic manufacturing industry.
1. Voltage division and current shunting: When the chip resistor is in series or parallel with other components such as light bulbs in the circuit, it can play the role of voltage division and current shunting. In a series circuit, the chip resistor shares the voltage with another component; in a parallel circuit, the chip resistor shares the current with other components.
2. Impedance matching: During the signal transmission process, the chip resistor helps to achieve the matching of the load impedance and the internal impedance of the excitation source by adjusting the impedance, thereby optimizing the signal transmission efficiency.
3. Filtering: In the RC charging and discharging circuit composed of a resistor and a capacitor in series, the chip resistor plays a filtering role, helping to stabilize the voltage and current in the circuit and reduce fluctuations and interference.
4. Special resistor functions: Special types of chip resistors, such as resistors made of semiconductor materials, have variable resistance values and are used to achieve more complex circuit functions, such as impedance control.
5. Save space and improve reliability: Due to the small size and light weight of chip resistors, circuit space costs can be greatly saved, making the design more refined. At the same time, its ability to adapt to reflow soldering and wave soldering improves the reliability and efficiency of production. -
2. Resistance value representation method
In the digital identification of chip resistors, the first three digits are usually used to indicate the resistance value. These digits are interpreted in decimal, such as "100" means the resistance value is 100 ohms. In some cases, if the resistor value is large, "R" may be used to indicate the decimal point position, such as "1R0" for a resistor value of 1.0 ohm.
-
3. Chip Resistor package power relationship
Formula
Current = (rated power / resistance) square root
Power P = U2 / R
Package Rated power 70°C Maximum operating voltage (V) Imperial (inch) Metric (mm)
0201 0603 1/20W / 25
0402 1005 1/16W / 50
0603 1608 1/16W 1/10W 50
0805 2012 1/10W 1/8W 150
1206 3216 1/8W 1/4W 200
1210 3225 1/4W 1/3W 200
1812 4832 1/2W / 200
2010 5025 1/2W 3/4W 200
2512 6432 1W / 200
