RP60515R0100JNBK

KYOCERA AVX RP60515R0100JNBK

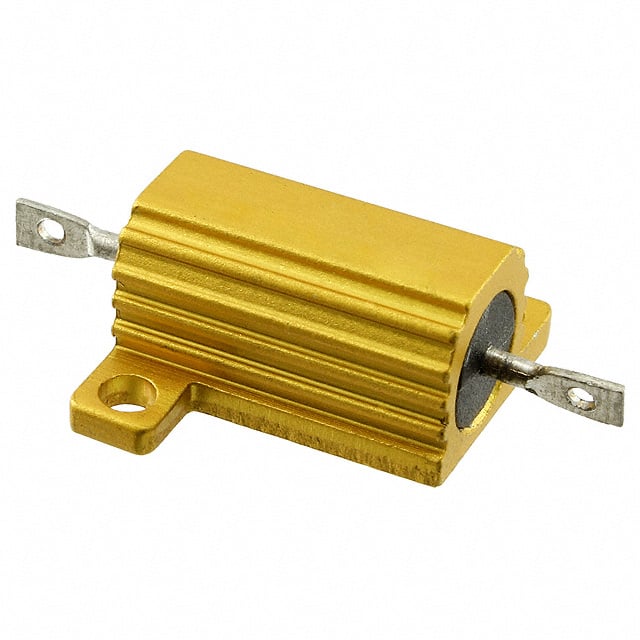

The picture is for reference only, please refer to the product specification

  • RP60515R0100JNBK
  • KYOCERA AVX
  • RES CHAS MNT 100 OHM 5% 60W
  • Chassis Mount Resistors
  • RP60515R0100JNBK Datasheet
  • Axial
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2847
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is RP60515R0100JNBK

KYOCERA AVX Part Number RP60515R0100JNBK（Chassis Mount Resistors）, developed and manufactured by KYOCERA AVX, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

RP60515R0100JNBK is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

RP60515R0100JNBK Specifications

  • Part NumberRP60515R0100JNBK
  • CategoryChassis Mount Resistors
  • ManufacturerKYOCERA AVX
  • DescriptionRES CHAS MNT 100 OHM 5% 60W
  • PackageBulk
  • SeriesRP6
  • Features-
  • Operating Temperature-55°C ~ 150°C
  • Package / CaseAxial
  • Tolerance±5%
  • Temperature Coefficient150ppm/°C
  • Size / Dimension0.516" L x 0.250" W (13.10mm x 6.35mm)
  • Power (Watts)60W
  • Height - Seated (Max)0.150\" (3.81mm)
  • Lead StyleTab
  • Failure Rate-
  • Resistance100 Ohms
  • CompositionThin Film
  • Coating, Housing TypeAluminum Oxide
  • Mounting FeatureFlanges

Application of RP60515R0100JNBK

Chassis Mount Resistors The main function of chassis mount resistors isto limit current, adjust voltage distribution, and realize voltage division, shunt, or impedance matching of the circuit. In the circuit, they are like precision "regulators", by consuming electrical energy to limit the flow of current, protect other components from excessive current impact, to ensure the stable operation of the circuit. Pedestal mounted resistors are widely used in electronic equipment, communication equipment, industrial automation control systems, automotive electronics, medical equipment, and consumer electronics. For example, in automotive electronic systems, they are used to regulate motor drive current and protect the motor from damage; In communication equipment, it is used to adjust signal levels to ensure clear transmission of signals.

RP60515R0100JNBK Datasheet

RP60515R0100JNBK Datasheet , Bulk,RP6,-55°C ~ 150°C,Axial,±5%,150ppm/°C,0.516" L x 0.250" W (13.10mm x 6.35mm),60W,0.150\" (3.81mm),Tab,100 Ohms,Thin Film,Aluminum Oxide,Flanges

RP60515R0100JNBK Classification

Chassis Mount Resistors

Chassis Mount Resistors (Chassis Mount Resistors) is a resistance component designed with a base for easy mounting and fixing. It is usually composed of a resistance body, pins and a fixed base. The resistance body is engraved with an accurate resistance value, and is connected to an external circuit through pins. The resistance body is made of high-precision resistive materials that can withstand large currents and power, while the metal base is used for heat dissipation and fixation. This design not only enhances the heat dissipation capacity of the resistor, but also provides good mechanical strength and electrical stability, so that it can maintain stable performance under extreme conditions such as high temperature, vibration, shock, etc.

FAQ about Chassis Mount Resistors

  • 1. What is a Chassis Mount Resistor?

    Chassis Mount Resistor is a high power resistor that is usually mounted on a metal chassis or heat sink to enhance heat dissipation. It is suitable for electrical and electronic applications that require high power and stable performance.

  • 2. How to install chassis mount resistors?

    Chassis mount resistors are usually bolted to a heat sink or metal chassis to enhance heat dissipation and connected to the circuit using electrical terminals or leads.

  • 3. How high is the withstand voltage value of a chassis mount resistor?

    The withstand voltage value is the maximum voltage that the resistor can withstand, which usually depends on the design and materials of the resistor. Different models of chassis-mounted resistors may have a withstand voltage ranging from hundreds to thousands of volts.
