Recom Power RSD-2412/HP-R

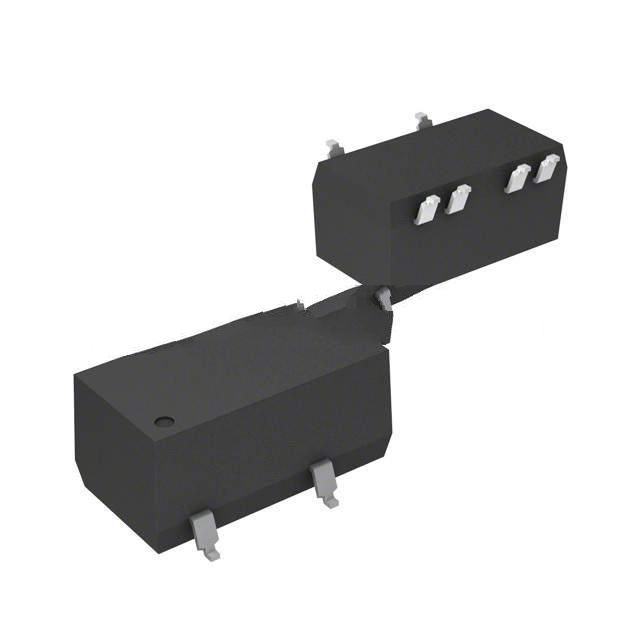

The picture is for reference only, please refer to the product specification
- RSD-2412/HP-R
- Recom Power
- CONV DC/DC 1W 24VIN +/-12VOUT
- DC DC Converters
- RSD-2412/HP-R Datasheet
- 10-SMD Module, 6 Leads
- 10-SMD Module, 6 Leads
-
Lead free / RoHS Compliant - 15967
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RSD-2412/HP-R
Recom Power Part Number RSD-2412/HP-R（DC DC Converters）, developed and manufactured by Recom Power, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RSD-2412/HP-R is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RSD-2412/HP-R Specifications
- Part NumberRSD-2412/HP-R
- CategoryDC DC Converters
- ManufacturerRecom Power
- DescriptionCONV DC/DC 1W 24VIN +/-12VOUT
- Package10-SMD Module, 6 Leads
- SeriesECONOLINE RSD
- TypeIsolated Module
- FeaturesSCP
- Operating Temperature-40°C ~ 85°C
- Mounting TypeSurface Mount
- Package / Case10-SMD Module, 6 Leads
- ApplicationsITE (Commercial), Medical
- Number of Outputs2
- Voltage - Input (Min)21.6V
- Voltage - Input (Max)26.4V
- Voltage - Output 112V
- Current - Output (Max)42mA, 42mA
- Size / Dimension0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm)
- Power (Watts)1W
- Voltage - Isolation3kV
- Efficiency80%
- Voltage - Output 2-12V
Application of RSD-2412/HP-R
RSD-2412/HP-R Datasheet
RSD-2412/HP-R Datasheet , 10-SMD Module, 6 Leads,ECONOLINE RSD,Isolated Module,SCP,-40°C ~ 85°C,Surface Mount,10-SMD Module, 6 Leads,ITE (Commercial), Medical,2,21.6V,26.4V,12V,42mA, 42mA,0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm
RSD-2412/HP-R Classification
DC DC Converters
FAQ about DC DC Converters
-
1. Why do we need DC-DC converters?
Voltage adaptation: Different circuits or devices may require different operating voltages.
Efficiency improvement: Optimize power usage efficiency by adjusting the voltage.
Space saving: Allows the use of smaller batteries or other power components.
Protection circuit: Prevents overvoltage or undervoltage from damaging the circuit. -
2. What is the difference between a DC converter and a transformer?
DC converter: processes direct current and performs voltage transformation.
Transformer: processes only alternating current and changes the voltage through the principle of electromagnetic induction. -
3. How does an isolated DC/DC converter work?
An isolated DC/DC converter uses a transformer to achieve electrical isolation between the primary and secondary sides, thereby improving safety. It first converts the DC input into a high-frequency AC signal, which is then transmitted to the secondary side through a transformer, where it is rectified back to DC again.
