SA102A120JAK

KYOCERA AVX SA102A120JAK

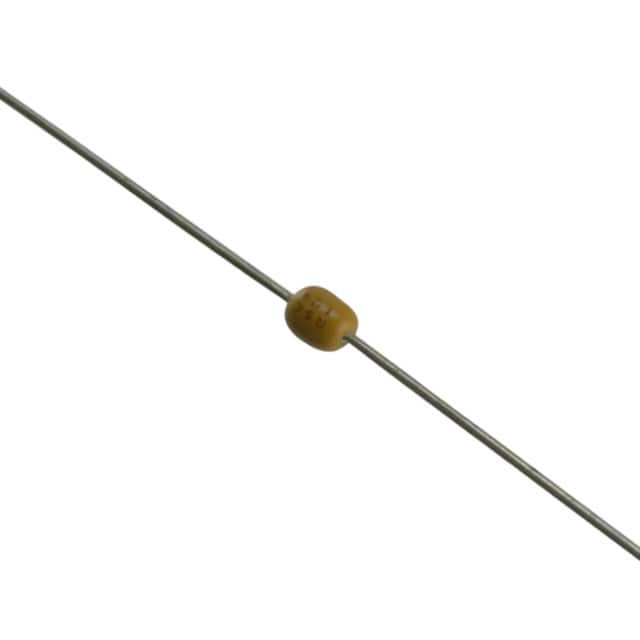

The picture is for reference only, please refer to the product specification

  • SA102A120JAK
  • KYOCERA AVX
  • CAP CER 12PF 200V NP0 AXIAL
  • Ceramic Capacitors
  • SA102A120JAK Datasheet
  • Axial
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1829
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is SA102A120JAK

KYOCERA AVX Part Number SA102A120JAK（Ceramic Capacitors）, developed and manufactured by KYOCERA AVX, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

SA102A120JAK is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

SA102A120JAK Specifications

  • Part NumberSA102A120JAK
  • CategoryCeramic Capacitors
  • ManufacturerKYOCERA AVX
  • DescriptionCAP CER 12PF 200V NP0 AXIAL
  • PackageTape & Reel (TR)
  • SeriesSpinGuard® SA
  • Features-
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeThrough Hole
  • Package / CaseAxial
  • ApplicationsGeneral Purpose
  • Tolerance±5%
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.100" Dia x 0.170" L (2.54mm x 4.32mm)
  • Voltage - Rated200V
  • Lead Spacing-
  • Thickness (Max)-
  • Ratings-
  • Height - Seated (Max)-
  • Capacitance12 pF
  • Lead StyleStraight
  • Failure Rate-

Application of SA102A120JAK

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

SA102A120JAK Datasheet

SA102A120JAK Datasheet , Tape & Reel (TR),SpinGuard® SA,-55°C ~ 125°C,Through Hole,Axial,General Purpose,±5%,C0G, NP0,0.100" Dia x 0.170" L (2.54mm x 4.32mm),200V,12 pF,Straight

SA102A120JAK Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. Why are ceramic capacitors better?

    Small size: suitable for high-density circuit board design.
    Good temperature resistance: can work over a wide temperature range.
    High reliability: no electrolyte, so it is not easy to age.
    Good frequency response: suitable for high-frequency applications.
    Low ESR: low equivalent series resistance, which helps to improve efficiency.

  • 2. Can I replace film capacitors with ceramic capacitors?

    In many cases, ceramic capacitors can be used to replace film capacitors, especially when smaller size and lower cost are required. However, it is important to note that ceramic capacitors may have different temperature coefficients and self-healing characteristics, which may affect performance in a specific application.

  • 3. What is the difference between Class 1 and Class 2 ceramic capacitors?

    Class 1: has high accuracy and stable temperature coefficient, suitable for precision circuits.
    Class 2: has higher capacitance value, but larger temperature coefficient and tolerance, suitable for general applications.
