SB20150TR

SMC Diode Solutions SB20150TR

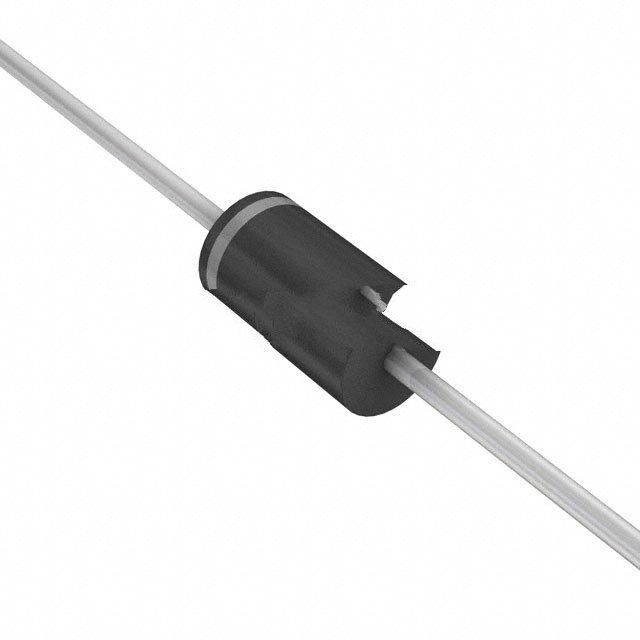

The picture is for reference only, please refer to the product specification

  • SB20150TR
  • SMC Diode Solutions
  • DIODE SCHOTTKY 150V 20A DO201AD
  • Diodes - Rectifiers - Single
  • SB20150TR Datasheet
  • DO-201AD, Axial
  • DO-201AD, Axial
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 22445
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is SB20150TR

SMC Diode Solutions Part Number SB20150TR（Diodes - Rectifiers - Single）, developed and manufactured by SMC Diode Solutions, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

SB20150TR is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

SB20150TR Specifications

  • Part NumberSB20150TR
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerSMC Diode Solutions
  • DescriptionDIODE SCHOTTKY 150V 20A DO201AD
  • PackageDO-201AD, Axial
  • Series-
  • Mounting TypeThrough Hole
  • Package / CaseDO-201AD, Axial
  • Supplier Device PackageDO-201AD
  • Diode TypeSchottky
  • Current - Average Rectified (Io)20A
  • Voltage - Forward (Vf) (Max) @ If1.05V @ 20A
  • Current - Reverse Leakage @ Vr1mA @ 150V
  • Voltage - DC Reverse (Vr) (Max)150V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Operating Temperature - Junction-50°C ~ 150°C

Application of SB20150TR

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

SB20150TR Datasheet

SB20150TR Datasheet , DO-201AD, Axial,Through Hole,DO-201AD, Axial,DO-201AD,Schottky,20A,1.05V @ 20A,1mA @ 150V,150V,Fast Recovery =< 500ns, > 200mA (Io),-50°C ~ 150°C

SB20150TR Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.

FAQ about Diodes - Rectifiers - Single

  • 1. What is the difference between Schottky diodes and traditional silicon rectifier diodes?

    Schottky diodes have a lower forward voltage drop (typically 0.2V to 0.3V) and faster switching speed, making them suitable for high-frequency applications. However, their reverse voltage is relatively low and is typically used in circuits with lower voltages.

  • 2. Can a single rectifier diode be used for high-frequency applications?

    Traditional silicon rectifier diodes are not suitable for high-frequency applications because their reverse recovery time is relatively long. For high-frequency applications, fast recovery diodes or Schottky diodes are typically used to reduce switching losses and improve efficiency.

  • 3. How to improve the efficiency of rectifier diodes?

    The use of Schottky diodes or fast recovery diodes can reduce forward voltage drop and reverse recovery time, thereby improving the efficiency of rectifier circuits, especially in high-frequency applications.
