SI8261BAA-C-ISR

Silicon Labs SI8261BAA-C-ISR

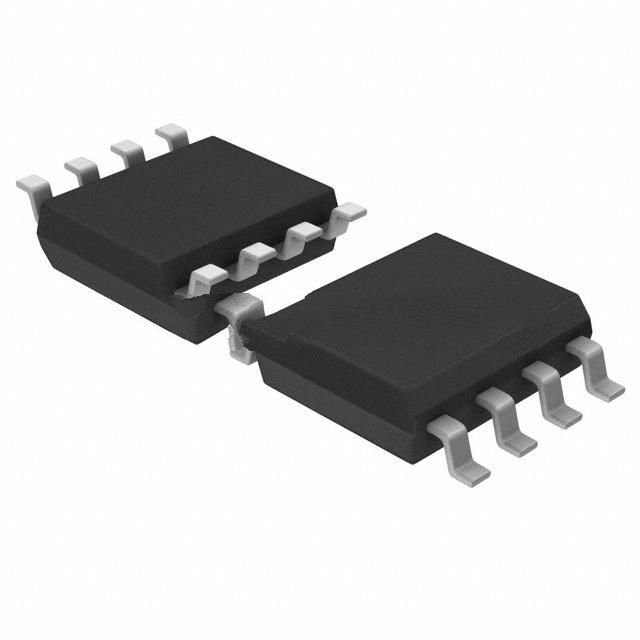

The picture is for reference only, please refer to the product specification

  • SI8261BAA-C-ISR
  • Silicon Labs
  • DIGITAL ISOLATOR GATE DRIVER
  • Isolators - Gate Drivers
  • SI8261BAA-C-ISR Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4777
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is SI8261BAA-C-ISR

Silicon Labs Part Number SI8261BAA-C-ISR（Isolators - Gate Drivers）, developed and manufactured by Silicon Labs, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

SI8261BAA-C-ISR is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

SI8261BAA-C-ISR Specifications

  • Part NumberSI8261BAA-C-ISR
  • CategoryIsolators - Gate Drivers
  • ManufacturerSilicon Labs
  • DescriptionDIGITAL ISOLATOR GATE DRIVER
  • Package-
  • SeriesAutomotive, AEC-Q100
  • Voltage - Supply6.3 V ~ 30 V
  • Operating Temperature-40°C ~ 125°C
  • Number of Channels1
  • TechnologyCapacitive Coupling
  • Current - Peak Output4A
  • ApprovalsCQC, CSA, UR, VDE
  • Common Mode Transient Immunity (Min)35kV/µs
  • Propagation Delay tpLH / tpHL (Max)60ns, 50ns
  • Pulse Width Distortion (Max)10ns (Typ)
  • Rise / Fall Time (Typ)5.5ns, 8.5ns
  • Current - Output High, Low500mA, 1.2A
  • Voltage - Forward (Vf) (Typ)2.8V (Max)
  • Current - DC Forward (If) (Max)30mA

Application of SI8261BAA-C-ISR

Isolators - Gate Drivers have a wide range of applications in industrial automation, new energy vehicles, power electronics, medical equipment, rail transit, aerospace, and other fields. They are usually used to drive power semiconductor devices such as IGBT and MOSFET to achieve functions such as motor control, power conversion, inverter control, etc. In these applications, the isolator gate driver not only provides necessary driving signals, but also protects the control circuit from high voltage shocks, ensuring stable system operation and personal safety.

SI8261BAA-C-ISR Datasheet

SI8261BAA-C-ISR Datasheet , Automotive, AEC-Q100,6.3 V ~ 30 V,-40°C ~ 125°C,1,Capacitive Coupling,4A,CQC, CSA, UR, VDE,35kV/µs,60ns, 50ns,10ns (Typ),5.5ns, 8.5ns,500mA, 1.2A,2.8V (Max),30mA

SI8261BAA-C-ISR Classification

Isolators - Gate Drivers

Isolators-Gate Drivers are integrated circuits used to electrically isolate and drive power switching devices. It consists of a signal transmission part and a power drive part. Isolator-gate drivers use optocoupler isolation technology to convert the input signal into an optical signal by photoelectric effect, and then convert the optical signal into an output signal by photoelectric converter. In the whole process, the input and output signals are isolated by photoelectric isolators, avoiding direct contact with electrical signals, thus improving the stability and safety of the system.
