SR071A121KAATR1

KYOCERA AVX SR071A121KAATR1

The picture is for reference only, please refer to the product specification

  • SR071A121KAATR1
  • KYOCERA AVX
  • CAP CER 120PF 100V C0G/NP0 RAD
  • Ceramic Capacitors
  • SR071A121KAATR1 Datasheet
  • Radial
  • Radial
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4203
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is SR071A121KAATR1

KYOCERA AVX Part Number SR071A121KAATR1（Ceramic Capacitors）, developed and manufactured by KYOCERA AVX, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

SR071A121KAATR1 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

SR071A121KAATR1 Specifications

  • Part NumberSR071A121KAATR1
  • CategoryCeramic Capacitors
  • ManufacturerKYOCERA AVX
  • DescriptionCAP CER 120PF 100V C0G/NP0 RAD
  • PackageRadial
  • SeriesSkyCap? SR
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeThrough Hole
  • Package / CaseRadial
  • ApplicationsGeneral Purpose
  • Tolerance±10%
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.150" L x 0.100" W (3.81mm x 2.54mm)
  • Voltage - Rated100V
  • Lead Spacing0.100" (2.54mm)
  • Height - Seated (Max)0.100" (2.54mm)
  • Capacitance120pF
  • Lead StyleFormed Leads - Kinked

Application of SR071A121KAATR1

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

SR071A121KAATR1 Datasheet

SR071A121KAATR1 Datasheet , Radial,SkyCap? SR,-55°C ~ 125°C,Through Hole,Radial,General Purpose,±10%,C0G, NP0,0.150" L x 0.100" W (3.81mm x 2.54mm),100V,0.100" (2.54mm),0.100" (2.54mm),120pF,Formed Leads - Kinked

SR071A121KAATR1 Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. How do I know if my ceramic capacitor is bad?

    Visual inspection: Check for cracks, bulges, or other physical damage.
    Multimeter test: Measure the capacitance value to see if it is close to the nominal value, and check for shorts or opens.

  • 2. Can I replace ceramic capacitors with film capacitors?

    Film capacitors can be used to replace ceramic capacitors in some application scenarios, especially when better temperature stability and lower losses are required.

  • 3. What is the difference between Class 1 and Class 2 ceramic capacitors?

    Class 1: has high accuracy and stable temperature coefficient, suitable for precision circuits.
    Class 2: has higher capacitance value, but larger temperature coefficient and tolerance, suitable for general applications.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about SR071A121KAATR1 ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )

Customer reviews

Post your comment

KYOCERA AVX
KYOCERA AVX
Founded on April 1, 1959, KYOCERA Corporation is a Japanese company specializing in the design, development, production, and sales of passive electronic components and interconnect products (AVX was originally an American company and later a...
SR205E334MAT
SR205E334MAT

CAP CER 0.33UF 50V Z5U RADIAL

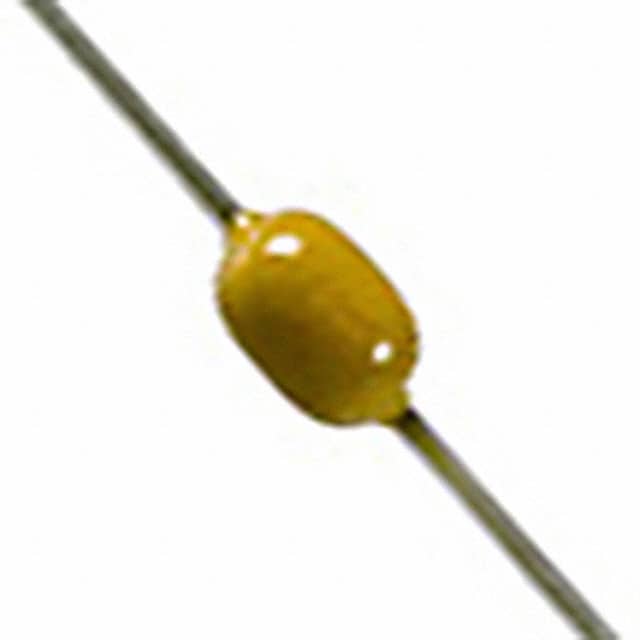

SA115E224ZAR
