SMC Diode Solutions SST12B-800CW

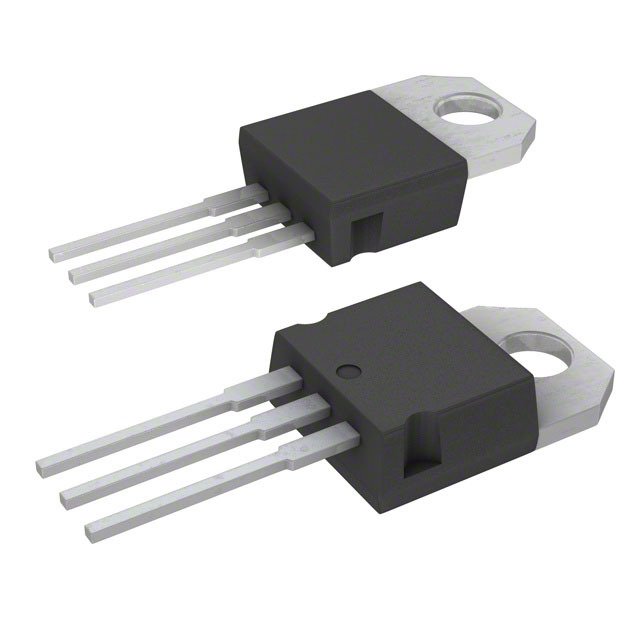

The picture is for reference only, please refer to the product specification
- SST12B-800CW
- SMC Diode Solutions
- 800V 12A PACKAGE TO-220B 3-QUADR
- Thyristors - TRIACs
- SST12B-800CW Datasheet
- TO-220-3
- -Reel®
-
Lead free / RoHS Compliant - 2608
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is SST12B-800CW
SMC Diode Solutions Part Number SST12B-800CW（Thyristors - TRIACs）, developed and manufactured by SMC Diode Solutions, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
SST12B-800CW is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
SST12B-800CW Specifications
- Part NumberSST12B-800CW
- CategoryThyristors - TRIACs
- ManufacturerSMC Diode Solutions
- Description800V 12A PACKAGE TO-220B 3-QUADR
- Package-Reel®
- SeriesSST12
- Operating Temperature-40°C ~ 125°C (TJ)
- Mounting TypeThrough Hole
- Package / CaseTO-220-3
- Supplier Device PackageTO-220B
- ConfigurationSingle
- Current - Hold (Ih) (Max)40 mA
- Voltage - Off State800 V
- Voltage - Gate Trigger (Vgt) (Max)1.3 V
- Current - Gate Trigger (Igt) (Max)35 mA
- Current - On State (It (RMS)) (Max)12 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)120A @ 50Hz
- Triac TypeStandard
Application of SST12B-800CW
SST12B-800CW Datasheet
SST12B-800CW Datasheet , -Reel®,SST12,-40°C ~ 125°C (TJ),Through Hole,TO-220-3,TO-220B,Single,40 mA,800 V,1.3 V,35 mA,12 A,120A @ 50Hz,Standard
SST12B-800CW Classification
Thyristors - TRIACs
FAQ about Thyristors - TRIACs
-
1. Why do TRIACs require a DIAC for triggering?
DIACs improve the symmetry of TRIAC firing by ensuring consistent triggering voltages in both directions. This reduces harmonic distortion in AC circuits, enhancing performance.
-
2. What precautions should be taken when using TRIACs with inductive loads?
Inductive loads can cause dv/dt turn-on issues. Adding a snubber circuit or using a zero-crossing detection mechanism can prevent premature triggering.
-
3. Why are TRIACs preferred in household electronics?
TRIACs are compact, cost-effective, and capable of handling bidirectional current, making them ideal for small, lightweight, and reliable household devices.
