UBJ228

Cinch Connectivity Solutions Trompeter UBJ228

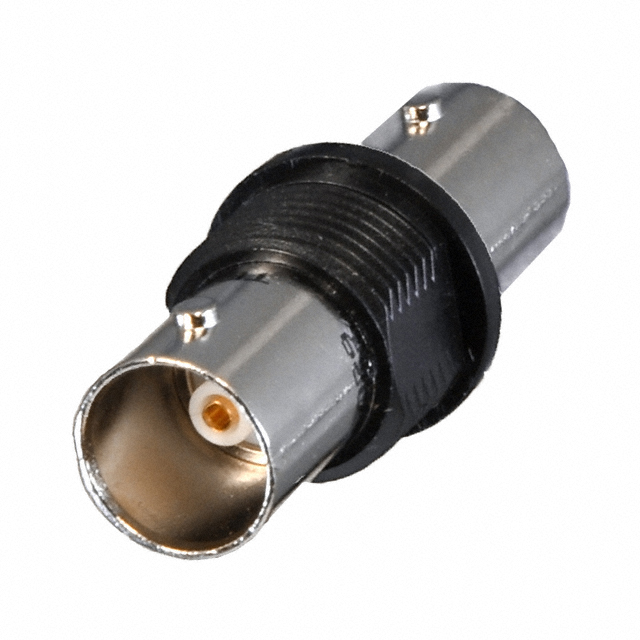

The picture is for reference only, please refer to the product specification

  • UBJ228
  • Cinch Connectivity Solutions Trompeter
  • CONN ADAPT JACK-JACK BNC 75 OHM
  • Coaxial Connectors (RF) - Adapters
  • UBJ228 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4706
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is UBJ228

Cinch Connectivity Solutions Trompeter Part Number UBJ228（Coaxial Connectors (RF) - Adapters）, developed and manufactured by Cinch Connectivity Solutions Trompeter, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

UBJ228 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

UBJ228 Specifications

  • Part NumberUBJ228
  • CategoryCoaxial Connectors (RF) - Adapters
  • ManufacturerCinch Connectivity Solutions Trompeter
  • DescriptionCONN ADAPT JACK-JACK BNC 75 OHM
  • Package-
  • Series220
  • FeaturesIsolated
  • Mounting TypePanel Mount
  • Frequency - Max4GHz
  • Impedance75 Ohm
  • StyleStraight
  • Mounting FeatureBulkhead
  • Convert From (Adapter End)BNC Jack, Female Socket
  • Convert To (Adapter End)BNC Jack, Female Socket
  • Conversion TypeSame Series
  • Adapter TypeJack to Jack
  • Fastening TypeBayonet Lock, Bayonet Lock
  • Adapter SeriesBNC to BNC
  • Center GenderFemale to Female
  • Center Contact PlatingGold

Application of UBJ228

Coaxial Connectors (RF) -Adapters play an important role in several fields. First of all, in the communications industry, whether it is the construction of base stations, antenna systems or satellite communications, a large number of RF devices are required to connect to each other. Because different manufacturers and different models of equipment often use different interface standards, coaxial connector (RF) adapters have become an essential tool for interconnection between devices. Secondly, in the field of RF testing, the interface match between the test instrument and the device under test is equally important. Through the use of adapters, you can easily connect different interfaces of the test instrument and the tested equipment, improve the test efficiency and accuracy.

UBJ228 Datasheet

UBJ228 Datasheet , 220,Isolated,Panel Mount,4GHz,75 Ohm,Straight,Bulkhead,BNC Jack, Female Socket,BNC Jack, Female Socket,Same Series,Jack to Jack,Bayonet Lock, Bayonet Lock,BNC to BNC,Female to Female,Gold

UBJ228 Classification

Coaxial Connectors (RF) - Adapters

Coaxial Connectors (RF) -Adapters are a type of conversion device specifically designed to connect coaxial connectors of different sizes or types. In the fields of wireless communication, microwave transmission and RF testing, direct connection often faces the problem of incompatibility due to the diversity of equipment indirect port standards. At this point, coaxial connector (RF) adapters become a key tool to solve this problem. Through precise interface design and excellent electrical performance, it realizes seamless conversion between coaxial connectors of different specifications, ensuring the smooth transmission of RF signals between different devices.

FAQ about Coaxial Connectors (RF) - Adapters

  • 1. What types of coaxial RF adapters are available?

    Common types include straight, right-angle, bulkhead, T-adapters, and in-series (same connector type) or between-series (different connector types) adapters.

  • 2. What frequencies can coaxial RF adapters handle?

    Depending on the design and quality, RF adapters can operate across a wide frequency range, typically from DC to 18 GHz, with some high-performance adapters reaching up to 40 GHz or more.

  • 3. How do I choose the right RF adapter for my application?

    Consider factors such as frequency range, connector types, impedance (50Ω or 75Ω), power handling capability, and mechanical durability based on your specific use case.
