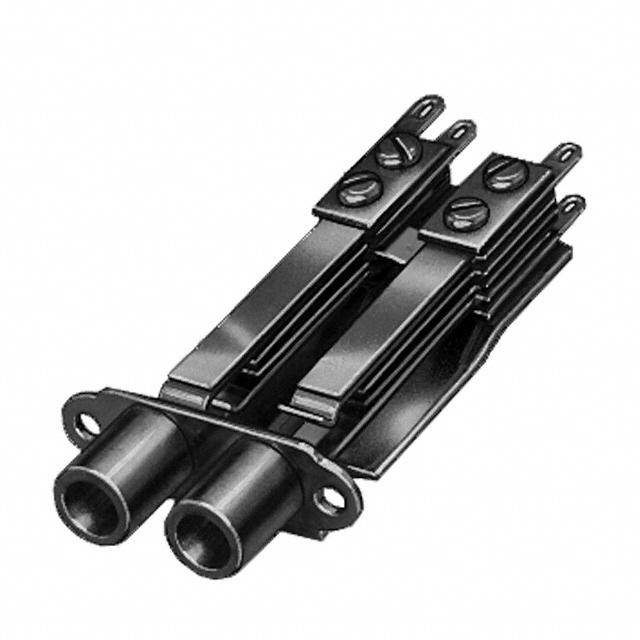

Switchcraft Inc. WMT389
The picture is for reference only, please refer to the product specification
- WMT389
- Switchcraft Inc.
- CONN JACK TWIN STEREO PNL MNT
- Barrel - Audio Connectors
- WMT389 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 14287
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is WMT389
Switchcraft Inc. Part Number WMT389（Barrel - Audio Connectors）, developed and manufactured by Switchcraft Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
WMT389 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
WMT389 Specifications
- Part NumberWMT389
- CategoryBarrel - Audio Connectors
- ManufacturerSwitchcraft Inc.
- DescriptionCONN JACK TWIN STEREO PNL MNT
- Package-
- SeriesWMT-Jax?
- FeaturesGrounding Tab
- Mounting TypePanel Mount
- TerminationWire Wrap
- Connector TypePhone Jack, Twin
- ShieldingUnshielded
- GenderFemale
- Number of Positions/Contacts2 Sets of 3 Conductors, 6 Contacts
- Signal LinesStereo
- Industry Recognized Mating Diameter6.35mm (0.250", 1/4") - Headphone
- Actual Diameter0.250" (6.35mm)
- Internal Switch(s)2 Sets of Two Switches
Application of WMT389
WMT389 Datasheet
WMT389 Datasheet , WMT-Jax?,Grounding Tab,Panel Mount,Wire Wrap,Phone Jack, Twin,Unshielded,Female,2 Sets of 3 Conductors, 6 Contacts,Stereo,6.35mm (0.250", 1/4") - Headphone,0.250" (6.35mm),2 Sets of Two Switches
WMT389 Classification
Barrel - Audio Connectors
FAQ about Barrel - Audio Connectors
-
1. What are barrel audio connectors?
Barrel audio connectors are cylindrical connectors commonly used for audio applications, such as headphones, microphones, and other audio equipment. They are known for their compact design and reliability.
-
2. Are barrel connectors compatible across all devices?
Not always. Compatibility depends on the device's connector type (TRS or TS), size (3.5 mm, 6.35 mm, etc.), and whether the device supports mono, stereo, or balanced audio.
-
3. What materials are commonly used in barrel audio connectors?
High-quality barrel connectors typically use materials like nickel or gold plating for the conductive parts and durable plastics or metal casings for insulation and protection.
