Diodes Incorporated ZTX718STOA

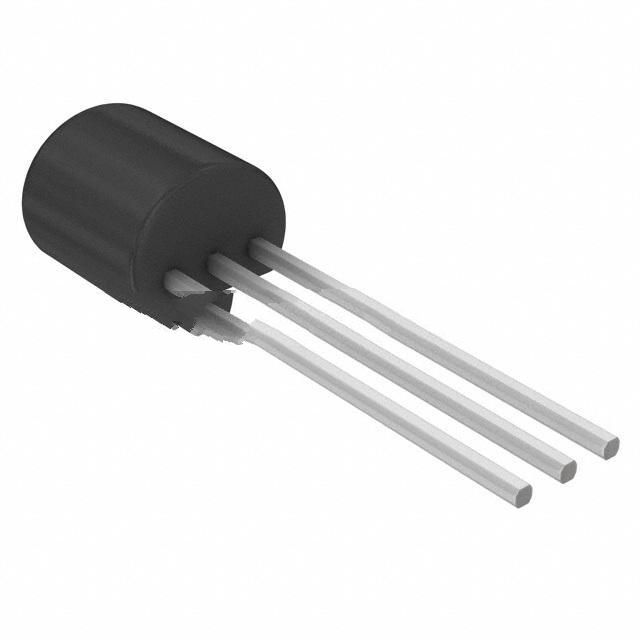

The picture is for reference only, please refer to the product specification
- ZTX718STOA
- Diodes Incorporated
- TRANS PNP 20V 2.5A E-LINE
- Transistors - Bipolar (BJT) - Single
- ZTX718STOA Datasheet
- E-Line-3, Formed Leads
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 1192
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is ZTX718STOA
Diodes Incorporated Part Number ZTX718STOA（Transistors - Bipolar (BJT) - Single）, developed and manufactured by Diodes Incorporated, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
ZTX718STOA is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
ZTX718STOA Specifications
- Part NumberZTX718STOA
- CategoryTransistors - Bipolar (BJT) - Single
- ManufacturerDiodes Incorporated
- DescriptionTRANS PNP 20V 2.5A E-LINE
- PackageTape & Reel (TR)
- Series-
- Operating Temperature-55°C ~ 200°C (TJ)
- Mounting TypeThrough Hole
- Package / CaseE-Line-3, Formed Leads
- Supplier Device PackageE-Line (TO-92 compatible)
- Power - Max1 W
- Transistor TypePNP
- Current - Collector (Ic) (Max)2.5 A
- Voltage - Collector Emitter Breakdown (Max)20 V
- Vce Saturation (Max) @ Ib, Ic260mV @ 200mA, 2.5A
- Current - Collector Cutoff (Max)100nA
- DC Current Gain (hFE) (Min) @ Ic, Vce150 @ 2A, 2V
- Frequency - Transition180MHz
Application of ZTX718STOA
ZTX718STOA Datasheet
ZTX718STOA Datasheet , Tape & Reel (TR),-55°C ~ 200°C (TJ),Through Hole,E-Line-3, Formed Leads,E-Line (TO-92 compatible),1 W,PNP,2.5 A,20 V,260mV @ 200mA, 2.5A,100nA,150 @ 2A, 2V,180MHz
ZTX718STOA Classification
Transistors - Bipolar (BJT) - Single
FAQ about Transistors - Bipolar (BJT) - Single
-
1. What is the difference between bipolar transistors and CMOS transistors?
The main differences between bipolar transistors and CMOS transistors are in working principles, structures, application scenarios, and power consumption.
Working principle
Bipolar transistor: Bipolar transistors have two types of carriers (holes and electrons) involved in conduction, and they are made of three parts of semiconductors with different doping levels. In bipolar transistors, the emitter emits free electrons, the collector receives holes, and the base controls the on and off of the current.
CMOS transistor: CMOS transistors have only one type of carrier (electrons or holes) involved in conduction, usually using a combination of P-type semiconductors and N-type semiconductors. In CMOS transistors, when the gate voltage is zero, the current does not flow. Only when the gate voltage reaches a certain value, the current will flow, which makes the CMOS transistor consume almost no power when static.
-
2. Is PNP transistor bipolar?
PNP transistor is a bipolar transistor. PNP transistor is a bipolar transistor used in electronic circuits to amplify, switch and control current. Its name "PNP" represents the three different semiconductor regions in its structure: two positive poles (P type) and one negative pole (N type).
-
3. Are bipolar transistors still in use?
Bipolar transistors are still in use and play an important role in many fields. Bipolar transistors, the full name of which is bipolar junction transistor (BJT), commonly known as triode, are electronic devices with three terminals, made of three parts of semiconductors with different doping levels. Its working principle involves the flow of two carriers, electrons and holes, so it is called bipolar.
