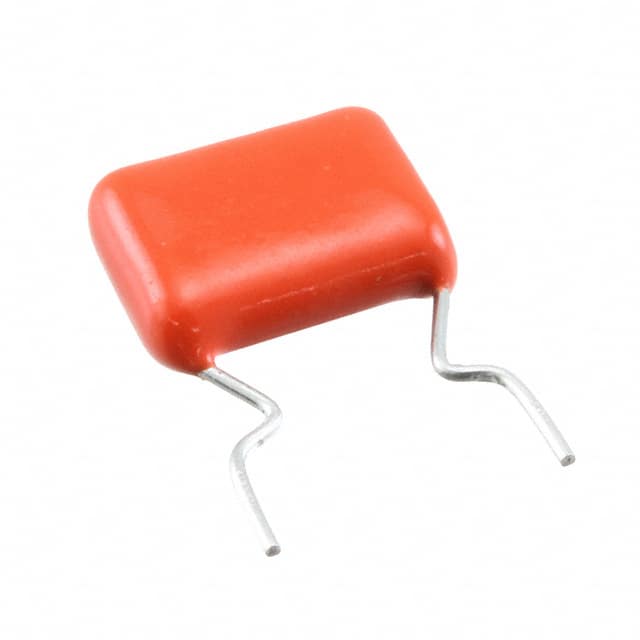

Vishay Beyschlag/Draloric/BC Components BFC236828224
The picture is for reference only, please refer to the product specification
- BFC236828224
- Vishay Beyschlag/Draloric/BC Components
- CAP FILM 0.22UF 10% 100VDC RAD
- Film Capacitors
- BFC236828224 Datasheet
- Radial
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 25208
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is BFC236828224
Vishay Beyschlag/Draloric/BC Components Part Number BFC236828224（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
BFC236828224 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
BFC236828224 Specifications
- Part NumberBFC236828224
- CategoryFilm Capacitors
- ManufacturerVishay Beyschlag/Draloric/BC Components
- DescriptionCAP FILM 0.22UF 10% 100VDC RAD
- PackageTape & Reel (TR)
- SeriesMKT368
- FeaturesLong Life
- Operating Temperature-55°C ~ 105°C
- Mounting TypeThrough Hole
- Package / CaseRadial
- ApplicationsGeneral Purpose
- Tolerance±10%
- Size / Dimension0.492" L x 0.177" W (12.50mm x 4.50mm)
- TerminationPC Pins
- Voltage Rating - AC63V
- Voltage Rating - DC100V
- Lead Spacing0.394\" (10.00mm)
- Ratings-
- Height - Seated (Max)0.630\" (16.00mm)
- Capacitance0.22 µF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolyester, Metallized
Application of BFC236828224
BFC236828224 Datasheet
BFC236828224 Datasheet , Tape & Reel (TR),MKT368,Long Life,-55°C ~ 105°C,Through Hole,Radial,General Purpose,±10%,0.492" L x 0.177" W (12.50mm x 4.50mm),PC Pins,63V,100V,0.394\" (10.00mm),0.630\" (16.00mm),0.22 µF,Polyester
BFC236828224 Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What are the uses of power film capacitors?
Power film capacitors are widely used in power systems, communication equipment, automotive electronics and household appliances.
Power system
In power systems, power film capacitors are mainly used in high-voltage direct current transmission (HVDC) and reactive power compensation devices. HVDC transmission has the advantages of long transmission distance, low loss and small impact on the environment. Power film capacitors can effectively improve the voltage stability of the system, reduce voltage fluctuations and improve the quality of electric energy. In addition, power film capacitors can also be used in reactive power compensation devices. By adjusting the reactive power in the power grid, the power factor of the power grid can be improved, line loss can be reduced and the utilization rate of electric energy can be improved.
Communication equipment
In communication equipment, power film capacitors are mainly used in devices such as filters, couplers and isolators. Filters are key components in communication equipment, which are used to eliminate noise and interference in signals. Power film capacitors are small in size, light in weight and have good frequency characteristics, which can effectively improve the performance of filters. Couplers and isolators are used for signal transmission and isolation. Power film capacitors can achieve high-frequency and high-isolation coupling and isolation functions to meet the high-performance requirements of communication equipment.
Automotive electronics
In the field of automotive electronics, power film capacitors are used in electronic control units (ECUs), motor controllers, and battery management systems. ECUs are the core components of automotive electronic systems and are responsible for controlling various functions of the car. Power film capacitors can improve their reliability and stability. Motor controllers are key components of electric vehicles and are responsible for controlling the speed and torque of the motor. Power film capacitors can achieve efficient and high-precision motor control functions. Battery management systems are responsible for monitoring and managing battery status. Power film capacitors can improve their accuracy and stability.
Household appliances
In the field of household appliances, power film capacitors are mainly used in home appliances such as air conditioners, refrigerators, and washing machines. These home appliances usually require high power and high-frequency applications. The high-frequency filtering and bypass characteristics of power film capacitors make them perform well in these applications. -
2. Can film capacitors be used for AC?
Yes
Film capacitors can be used for AC. Film capacitors can work normally in AC circuits and have specific application scenarios and advantages.
Structure and working principle of film capacitors
Film capacitors are mainly composed of metal foil (or foil obtained by metallizing plastic) as electrode plates and plastic film as dielectric. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These capacitors are usually made by winding or stacking processes to form a cylindrical structure. -
3. What is the difference between foil capacitors and film capacitors?
Electrode materials, structure, and application areas
The main difference between foil capacitors and film capacitors lies in electrode materials, structures, and application areas.
Electrode materials and structures
Foil capacitors: Foil capacitors usually use metal foil as electrodes. This electrode is formed on a plastic film by vacuum evaporation, which is called a metallized film. This structure can save the thickness of the electrode foil, thereby reducing the volume of the capacitor and making it more miniaturized.
Film capacitors: Film capacitors use plastic films as dielectrics. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These films overlap at both ends and are rolled into a cylinder to form a capacitor.
