ES3C-M3/9AT

Vishay Semiconductor - Diodes Division ES3C-M3/9AT

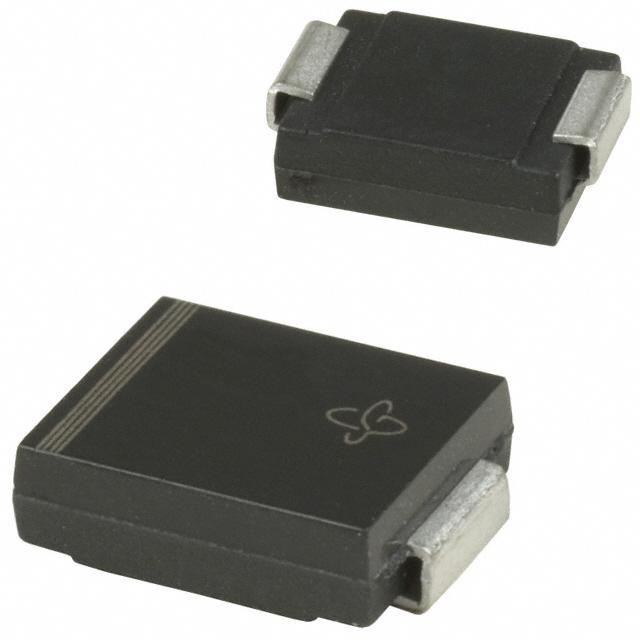

The picture is for reference only, please refer to the product specification

  • ES3C-M3/9AT
  • Vishay Semiconductor - Diodes Division
  • DIODE GEN PURP 150V 3A DO214AB
  • Diodes - Rectifiers - Single
  • ES3C-M3/9AT Datasheet
  • DO-214AB, SMC
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 10455
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is ES3C-M3/9AT

Vishay Semiconductor - Diodes Division Part Number ES3C-M3/9AT（Diodes - Rectifiers - Single）, developed and manufactured by Vishay Semiconductor - Diodes Division, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

ES3C-M3/9AT is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

ES3C-M3/9AT Specifications

  • Part NumberES3C-M3/9AT
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerVishay Semiconductor - Diodes Division
  • DescriptionDIODE GEN PURP 150V 3A DO214AB
  • PackageTape & Reel (TR)
  • Series-
  • Mounting TypeSurface Mount
  • Package / CaseDO-214AB, SMC
  • Supplier Device PackageDO-214AB (SMC)
  • Diode TypeStandard
  • Current - Average Rectified (Io)3A
  • Voltage - Forward (Vf) (Max) @ If900 mV @ 3 A
  • Current - Reverse Leakage @ Vr10 µA @ 150 V
  • Capacitance @ Vr, F45pF @ 4V, 1MHz
  • Voltage - DC Reverse (Vr) (Max)150 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)30 ns
  • Operating Temperature - Junction-55°C ~ 150°C

Application of ES3C-M3/9AT

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

ES3C-M3/9AT Datasheet

ES3C-M3/9AT Datasheet , Tape & Reel (TR),Surface Mount,DO-214AB, SMC,DO-214AB (SMC),Standard,3A,900 mV @ 3 A,10 µA @ 150 V,45pF @ 4V, 1MHz,150 V,Fast Recovery =< 500ns, > 200mA (Io),30 ns,-55°C ~ 150°C

ES3C-M3/9AT Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.
