MAX4174BAEUK

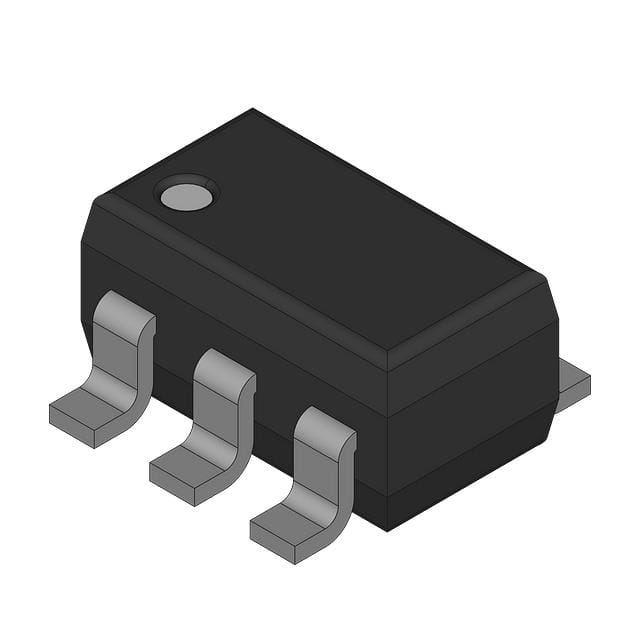

Maxim Integrated MAX4174BAEUK

The picture is for reference only, please refer to the product specification

  • MAX4174BAEUK
  • Maxim Integrated
  • R-R, FIXED-GAIN AMPLIFIER
  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • MAX4174BAEUK Datasheet
  • SC-74A, SOT-753
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 873
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is MAX4174BAEUK

Maxim Integrated Part Number MAX4174BAEUK（Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps）, developed and manufactured by Maxim Integrated, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

MAX4174BAEUK is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

MAX4174BAEUK Specifications

  • Part NumberMAX4174BAEUK
  • CategoryLinear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • ManufacturerMaxim Integrated
  • DescriptionR-R, FIXED-GAIN AMPLIFIER
  • PackageBulk
  • Series-
  • Operating Temperature-40°C ~ 85°C
  • Mounting TypeSurface Mount
  • Package / CaseSC-74A, SOT-753
  • Supplier Device PackageSOT-23-5
  • Current - Supply330µA
  • Output TypeRail-to-Rail
  • Number of Circuits1
  • Voltage - Supply, Single/Dual (±)2.5V ~ 5.5V, ±1.25V ~ 2.75V
  • Current - Output / Channel65 mA
  • -3db Bandwidth560 kHz
  • Amplifier TypeGeneral Purpose
  • Current - Input Bias50 pA
  • Voltage - Input Offset500 µV
  • Slew Rate0.7V/µs
  • Gain Bandwidth Product2 MHz

Application of MAX4174BAEUK

Instrumentation Amplifier is commonly used in medical instruments, industrial sensors, precision measuring equipment and other applications. Its high common-mode rejection ratio and low noise characteristics make it possible to accurately capture and amplify weak signals in complex environments, improving the measurement accuracy. Operational Amplifier (Op-Amp) Operational amplifier is widely used in analog signal processing, signal generation, filter design, automatic control and other fields. Its flexibility and powerful computing power provide engineers with a broad design space, making the realization of complex circuits possible. Buffer Amplifier is widely used in audio amplification, video transmission, data acquisition and other systems, effectively improving the stability and reliability of signal transmission.

MAX4174BAEUK Datasheet

MAX4174BAEUK Datasheet , Bulk,-40°C ~ 85°C,Surface Mount,SC-74A, SOT-753,SOT-23-5,330µA,Rail-to-Rail,1,2.5V ~ 5.5V, ±1.25V ~ 2.75V,65 mA,560 kHz,General Purpose,50 pA,500 µV,0.7V/µs,2 MHz

MAX4174BAEUK Classification

Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

Instrumentation amplifiers are designed for high precision measurements. It can effectively amplify weak differential signals (that is, two similar but slightly different signals), while suppressing common mode noise (that is, noise shared by two signals), thus ensuring the purity and accuracy of the signal.Operational Amplifier (Op-Amp) is a high-gain DC amplifier with differential input and single-ended output. Operational amplifiers can not only be used as amplifiers, but also realize mathematical operations such as addition, subtraction, integration, and differentiation through external circuit configuration.Buffer Amplifier is a special amplifier configuration that aims to keep the voltage of the input signal constant while providing enough driving capacity to support the load. It is usually implemented based on an operational amplifier.

FAQ about Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • 1. How to choose the right instrumentation amplifier?

    The input common-mode voltage range, gain-bandwidth product, noise performance, power consumption, temperature drift, and common-mode rejection ratio (CMRR) should be considered when selecting an instrumentation amplifier to ensure that it meets the accuracy requirements of a particular application.

  • 2. What are the main application scenarios of Op Amps?

    Operational amplifiers are widely used in signal conditioning, voltage follower, filter, comparator, integrator, differentiator, precision level shifter and other circuits, which are widely used in consumer electronics, industrial automation, and instrumentation.

  • 3. Why do buffer amplifiers have high input impedance and low output impedance?

    A high input impedance ensures that no load is applied to the preamplifier circuitry, preventing signal degradation, while a low output impedance provides a large driving capacity, ensuring that the signal can be passed on to subsequent circuits without loss.
