RN55C1401BB14

Vishay Dale RN55C1401BB14

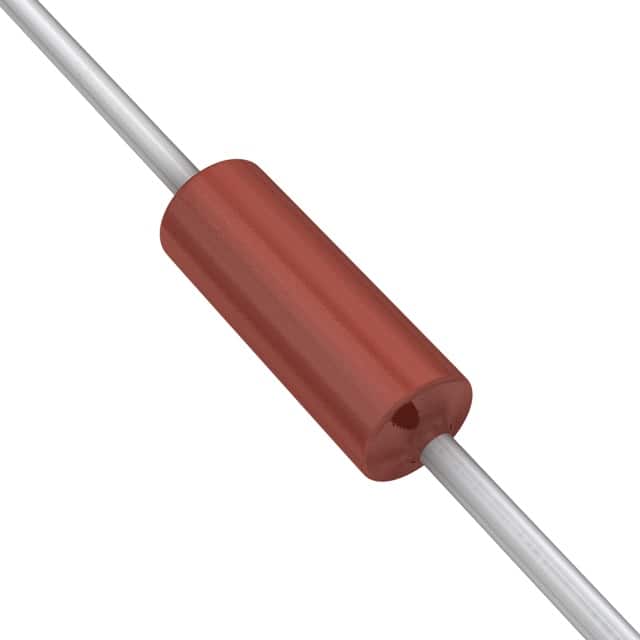

The picture is for reference only, please refer to the product specification

  • RN55C1401BB14
  • Vishay Dale
  • RES 1.4K OHM 1/8W .1% AXIAL
  • Through Hole Resistors
  • RN55C1401BB14 Datasheet
  • Axial
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 12329
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is RN55C1401BB14

Vishay Dale Part Number RN55C1401BB14（Through Hole Resistors）, developed and manufactured by Vishay Dale, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

RN55C1401BB14 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

RN55C1401BB14 Specifications

  • Part NumberRN55C1401BB14
  • CategoryThrough Hole Resistors
  • ManufacturerVishay Dale
  • DescriptionRES 1.4K OHM 1/8W .1% AXIAL
  • PackageBulk
  • SeriesMilitary, MIL-R-10509/7, RN55
  • FeaturesFlame Retardant Coating, Military, Moisture Resistant, Safety
  • Operating Temperature-65°C ~ 175°C
  • Package / CaseAxial
  • Supplier Device PackageAxial
  • Tolerance±0.1%
  • Temperature Coefficient±50ppm/°C
  • Size / Dimension0.090" Dia x 0.240" L (2.29mm x 6.10mm)
  • Power (Watts)0.125W, 1/8W
  • Height - Seated (Max)-
  • Failure Rate-
  • Resistance1.4 kOhms
  • CompositionMetal Film
  • Number of Terminations2

Application of RN55C1401BB14

Through Hole Resistors is a plug-in resistor with a through hole structure. Due to its high reliability, good heat dissipation performance, and easy maintenance, it is widely used in industrial control, communication equipment, automotive electronics, consumer electronics and other fields. Especially in the need to withstand higher power or harsh working environment, the advantages of through-hole resistance are more obvious. They are capable of long-term stable operation and maintain good performance even under extreme conditions such as high temperature, high humidity or vibration. The pin design of the through-hole resistor allows it to be easily fixed to the circuit board by welding, which is especially important for some circuit projects that require manual assembly or debugging. This flexible assembly method not only improves production efficiency, but also reduces maintenance costs.

RN55C1401BB14 Datasheet

RN55C1401BB14 Datasheet , Bulk,Military, MIL-R-10509/7, RN55,Flame Retardant Coating, Military, Moisture Resistant, Safety,-65°C ~ 175°C,Axial,Axial,±0.1%,±50ppm/°C,0.090" Dia x 0.240" L (2.29mm x 6.10mm),0.125W, 1/8W,1.4

RN55C1401BB14 Classification

Through Hole Resistors

Through Hole Resistors is a classic electronic component, has been called plug-in resistance. It refers to those resistors that are soldered and fixed by metal pins through holes in the circuit board and are mainly used to limit current, regulate voltage and divide voltage circuits. Through hole resistance can be divided into precision type and ordinary type, precision through hole resistance has higher parameter requirements. Compared with surface mount resistors, through-hole resistors show different characteristics and advantages in assembly and maintenance.
