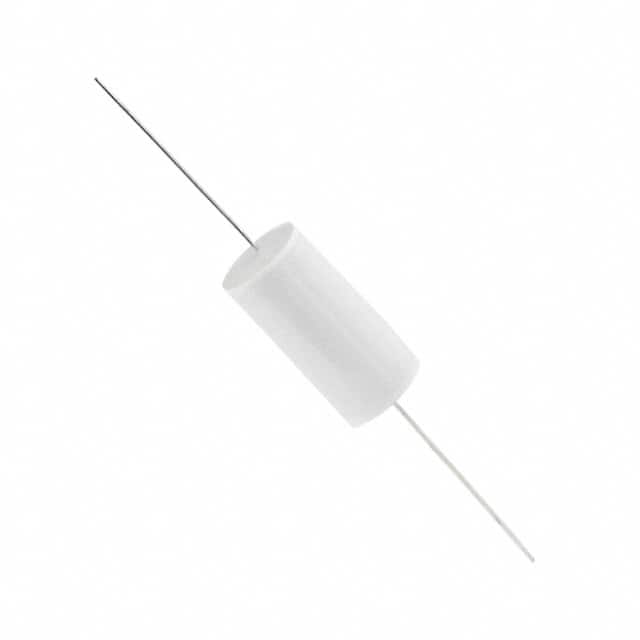

Vishay Beyschlag/Draloric/BC Components MKP1839056632G
The picture is for reference only, please refer to the product specification
- MKP1839056632G
- Vishay Beyschlag/Draloric/BC Components
- CAP FILM 56PF 2% 630VDC AXIAL
- Film Capacitors
- MKP1839056632G Datasheet
- Axial
- Tape & Box (TB)
-
Lead free / RoHS Compliant - 22782
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is MKP1839056632G
Vishay Beyschlag/Draloric/BC Components Part Number MKP1839056632G（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
MKP1839056632G is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
MKP1839056632G Specifications
- Part NumberMKP1839056632G
- CategoryFilm Capacitors
- ManufacturerVishay Beyschlag/Draloric/BC Components
- DescriptionCAP FILM 56PF 2% 630VDC AXIAL
- PackageTape & Box (TB)
- SeriesMKP1839
- Features-
- Operating Temperature-55°C ~ 100°C
- Mounting TypeThrough Hole
- Package / CaseAxial
- ApplicationsDC Link, DC Filtering; High Pulse, DV/DT
- Tolerance±2%
- Size / Dimension0.197" Dia x 0.433" L (5.00mm x 11.00mm)
- TerminationPC Pins
- Voltage Rating - AC250V
- Voltage Rating - DC630V
- Lead Spacing-
- Ratings-
- Height - Seated (Max)-
- Capacitance56 pF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolypropylene (PP), Metallized
Application of MKP1839056632G
MKP1839056632G Datasheet
MKP1839056632G Datasheet , Tape & Box (TB),MKP1839,-55°C ~ 100°C,Through Hole,Axial,DC Link, DC Filtering; High Pulse, DV/DT,±2%,0.197" Dia x 0.433" L (5.00mm x 11.00mm),PC Pins,250V,630V,56 pF,Polypropylene (PP), Metallized
MKP1839056632G Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What is a paper film capacitor?
Paper film capacitors are actually a conceptual error because "paper film capacitors" are not a standard type of capacitor. Based on the information provided, you may want to ask about paper capacitors and film capacitors.
Paper capacitors
Paper capacitors are capacitors that use paper as a dielectric. It consists of thin paper as the dielectric and aluminum foil as the electrode, which is wound into a cylindrical shape and then impregnated with a shell or epoxy resin. Paper capacitors have the following characteristics:
Low cost: Paper capacitors are usually low-cost and suitable for mass production.
Large loss: Due to its material properties, paper capacitors have large losses.
Application scenarios: Mainly used for bypass, coupling, filtering, etc. in low-frequency circuits. -
2. Are film capacitors suitable for audio?
Suitable
Film capacitors are very suitable for audio applications. Film capacitors perform well in audio circuits and have the following advantages:
Non-polarity: Film capacitors have no positive or negative poles, which gives them greater flexibility in circuit design.
High insulation impedance: The insulation impedance of film capacitors is very high, which can effectively reduce leakage current in the circuit and improve the stability of the circuit.
Excellent frequency characteristics: Film capacitors have a wide frequency response and can provide stable capacitance performance in the high and low frequency ranges, which is suitable for various frequency changes in audio circuits.
Low dielectric loss: The dielectric loss of film capacitors is very small, which means that during the transmission of audio signals, less energy is lost and the integrity of the signal is maintained.
Self-healing properties: Film capacitors have self-healing properties and can automatically repair internal defects when they occur, extending their service life. -
3. How do film capacitors fail?
High working environment temperature, improper selection of working current, exceeding the specified working voltage, harmonic current
The main reasons for film capacitor failure include the following:
High working environment temperature: Film capacitors can work normally in a temperature environment of -40℃~+105℃, but exceeding this range will accelerate thermal aging, resulting in a shortened service life, and even bursting in severe cases.
Improper selection of working current: The current value in the circuit should be less than the current value allowed by the film capacitor, otherwise it will cause the capacitor to heat up, and long-term use will shorten the life, and even burst in severe cases.
Exceeding the specified working voltage: Excessive voltage will cause partial discharge, which will then break down the capacitor and cannot be used.
There are harmonic currents: high-order harmonic currents are superimposed on fundamental currents, resulting in an increase in total current, causing capacitor load overload, internal expansion, and explosion.
Buying inferior capacitors: In order to reduce costs, some manufacturers on the market use low-quality materials to produce capacitors, which greatly reduces the actual withstand voltage and life of such capacitors.
The structural characteristics of film capacitors and the impact of the use environment on their performance:
Film capacitors are usually composed of polypropylene film, aluminum foil and plastic shell. Polypropylene film is sensitive to high temperature, which accelerates its aging and shortens the life of the capacitor. In addition, a humid environment will also cause water vapor to enter the capacitor, affecting its performance.
