MKP1839075632R

Vishay Beyschlag/Draloric/BC Components MKP1839075632R

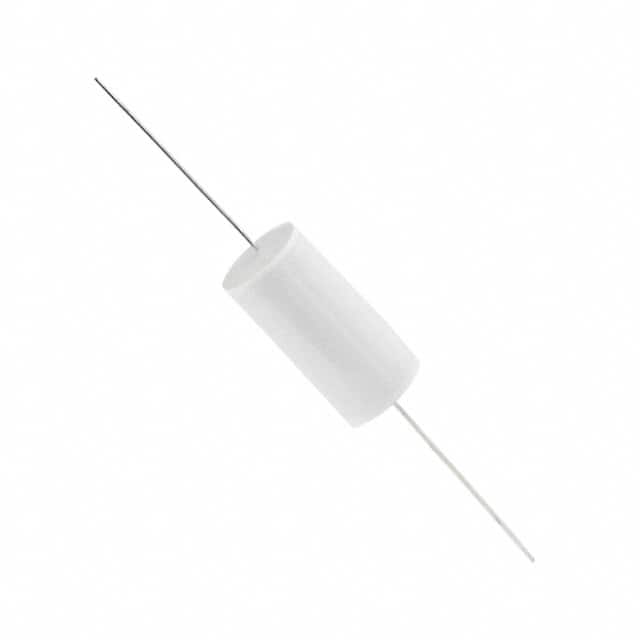

The picture is for reference only, please refer to the product specification

  • MKP1839075632R
  • Vishay Beyschlag/Draloric/BC Components
  • CAP FILM 75PF 2% 630VDC AXIAL
  • Film Capacitors
  • MKP1839075632R Datasheet
  • Axial
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2138
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is MKP1839075632R

Vishay Beyschlag/Draloric/BC Components Part Number MKP1839075632R（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

MKP1839075632R is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

MKP1839075632R Specifications

  • Part NumberMKP1839075632R
  • CategoryFilm Capacitors
  • ManufacturerVishay Beyschlag/Draloric/BC Components
  • DescriptionCAP FILM 75PF 2% 630VDC AXIAL
  • PackageTape & Reel (TR)
  • SeriesMKP1839
  • Features-
  • Operating Temperature-55°C ~ 100°C
  • Mounting TypeThrough Hole
  • Package / CaseAxial
  • ApplicationsDC Link, DC Filtering; High Pulse, DV/DT
  • Tolerance±2%
  • Size / Dimension0.217" Dia x 0.433" L (5.50mm x 11.00mm)
  • TerminationPC Pins
  • Voltage Rating - AC250V
  • Voltage Rating - DC630V
  • Lead Spacing-
  • Ratings-
  • Height - Seated (Max)-
  • Capacitance75 pF
  • ESR (Equivalent Series Resistance)-
  • Dielectric MaterialPolypropylene (PP), Metallized

Application of MKP1839075632R

Film capacitors are mainly used in multiple industries such as electronics, communication, automotive electronics, and medical equipment. In power electronics equipment, they are widely used in DC link filtering, power supply stabilization, and motor drive circuits to ensure smooth current and stable voltage. In audio devices such as speaker crossover networks, preamplifiers, and power amplifiers, thin film capacitors are favored for their excellent frequency response and low distortion characteristics, which help improve sound quality performance. In addition, thin film capacitors are often used in signal processing and filtering in communication systems, which can effectively remove noise in the signal and improve transmission quality. In the field of automotive electronics, thin film capacitors are used in engine management systems, airbag circuits, and in car entertainment systems to ensure circuit stability and safety. In medical equipment, such as electrocardiogram monitors and pacemakers, the high precision and stability of thin film capacitors make them key components that play an important role in monitoring and treating the health of patients.

MKP1839075632R Datasheet

MKP1839075632R Datasheet , Tape & Reel (TR),MKP1839,-55°C ~ 100°C,Through Hole,Axial,DC Link, DC Filtering; High Pulse, DV/DT,±2%,0.217" Dia x 0.433" L (5.50mm x 11.00mm),PC Pins,250V,630V,75 pF,Polypropylene (PP), Metallized

MKP1839075632R Classification

Film Capacitors

Film capacitors are capacitors that use thin film materials as dielectric. This structure mainly consists of two layers of conductive metal foil, sandwiched with a thin film medium, which is usually made of polymer materials such as polyether esters, polypropylene, or polystyrene. The design principle is based on the storage of charges. When voltage is applied to both ends of the capacitor, positive and negative charges accumulate on two layers of metal foil, forming an electric field. Thin film capacitors are renowned for their high stability, low loss factor, and wide operating temperature range, and are particularly suitable for high-frequency circuits. In addition, due to its good self-healing ability, which can self recover after partial breakdown in the dielectric, it has a long service life and high reliability.

FAQ about Film Capacitors

  • 1. Can film capacitors be used for AC?

    Yes
    Film capacitors can be used for AC. Film capacitors can work normally in AC circuits and have specific application scenarios and advantages.
    Structure and working principle of film capacitors
    Film capacitors are mainly composed of metal foil (or foil obtained by metallizing plastic) as electrode plates and plastic film as dielectric. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These capacitors are usually made by winding or stacking processes to form a cylindrical structure.

  • 2. How do film capacitors fail?

    High working environment temperature, improper selection of working current, exceeding the specified working voltage, harmonic current
    The main reasons for film capacitor failure include the following:
    High working environment temperature: Film capacitors can work normally in a temperature environment of -40℃~+105℃, but exceeding this range will accelerate thermal aging, resulting in a shortened service life, and even bursting in severe cases.
    Improper selection of working current: The current value in the circuit should be less than the current value allowed by the film capacitor, otherwise it will cause the capacitor to heat up, and long-term use will shorten the life, and even burst in severe cases.
    Exceeding the specified working voltage: Excessive voltage will cause partial discharge, which will then break down the capacitor and cannot be used.
    There are harmonic currents: high-order harmonic currents are superimposed on fundamental currents, resulting in an increase in total current, causing capacitor load overload, internal expansion, and explosion.
    Buying inferior capacitors: In order to reduce costs, some manufacturers on the market use low-quality materials to produce capacitors, which greatly reduces the actual withstand voltage and life of such capacitors.
    The structural characteristics of film capacitors and the impact of the use environment on their performance:
    Film capacitors are usually composed of polypropylene film, aluminum foil and plastic shell. Polypropylene film is sensitive to high temperature, which accelerates its aging and shortens the life of the capacitor. In addition, a humid environment will also cause water vapor to enter the capacitor, affecting its performance.

  • 3. What are the alternatives to film capacitors?

    CL21 capacitors, MPB capacitors, CBB13, CBB81, MMKP82 capacitors
    Alternatives to film capacitors mainly include CL21 capacitors, MPB capacitors, CBB13, CBB81 and MMKP82 capacitors. These alternatives have their own advantages and disadvantages in performance and applicable scenarios, and the specific choice depends on specific needs.
    CL21 capacitors
    CL21 capacitors and CBB22 capacitors can replace each other in applications such as filtering. CL21 capacitors are more stable than CBB22 capacitors under high-frequency conditions, so CL21 capacitors are more preferred in high-frequency circuits. However, CL21 capacitors are more expensive and perform better in high-frequency circuits.
    MPB capacitors
    MPB capacitors are boxed metallized polypropylene film capacitors with the same core as CBB22 capacitors, but with a plastic shell, which has better resistance to high temperature, moisture and sealing performance. MPB capacitors can replace CBB22 capacitors in high frequency, DC, AC and pulse high current applications, but their prices are relatively high.
    CBB13, CBB81 and MMKP82 capacitors
    These capacitors have a higher voltage resistance, up to 3000V, and are suitable for applications requiring higher voltages. However, they are also relatively expensive and larger in size.
