MKP1839068632G

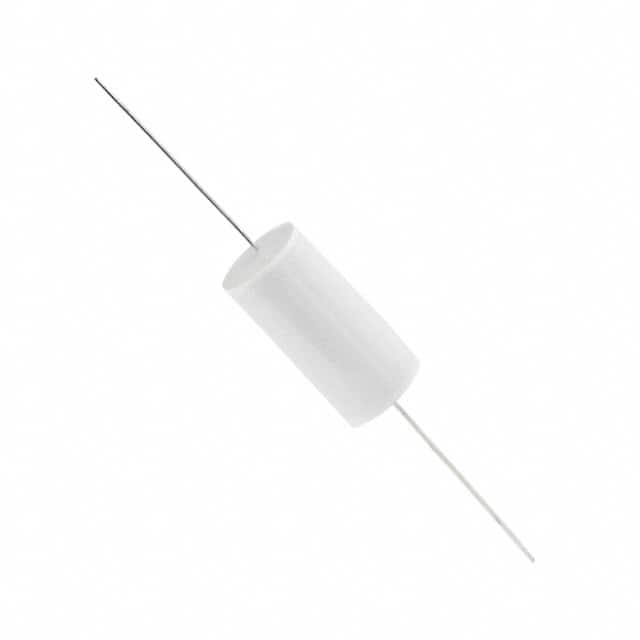

Vishay Beyschlag/Draloric/BC Components MKP1839068632G

The picture is for reference only, please refer to the product specification

  • MKP1839068632G
  • Vishay Beyschlag/Draloric/BC Components
  • CAP FILM 68PF 2% 630VDC AXIAL
  • Film Capacitors
  • MKP1839068632G Datasheet
  • Axial
  • Tape & Box (TB)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2658
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is MKP1839068632G

Vishay Beyschlag/Draloric/BC Components Part Number MKP1839068632G（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

MKP1839068632G is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

MKP1839068632G Specifications

  • Part NumberMKP1839068632G
  • CategoryFilm Capacitors
  • ManufacturerVishay Beyschlag/Draloric/BC Components
  • DescriptionCAP FILM 68PF 2% 630VDC AXIAL
  • PackageTape & Box (TB)
  • SeriesMKP1839
  • Features-
  • Operating Temperature-55°C ~ 100°C
  • Mounting TypeThrough Hole
  • Package / CaseAxial
  • ApplicationsDC Link, DC Filtering; High Pulse, DV/DT
  • Tolerance±2%
  • Size / Dimension0.217" Dia x 0.433" L (5.50mm x 11.00mm)
  • TerminationPC Pins
  • Voltage Rating - AC250V
  • Voltage Rating - DC630V
  • Lead Spacing-
  • Ratings-
  • Height - Seated (Max)-
  • Capacitance68 pF
  • ESR (Equivalent Series Resistance)-
  • Dielectric MaterialPolypropylene (PP), Metallized

Application of MKP1839068632G

Film capacitors are mainly used in multiple industries such as electronics, communication, automotive electronics, and medical equipment. In power electronics equipment, they are widely used in DC link filtering, power supply stabilization, and motor drive circuits to ensure smooth current and stable voltage. In audio devices such as speaker crossover networks, preamplifiers, and power amplifiers, thin film capacitors are favored for their excellent frequency response and low distortion characteristics, which help improve sound quality performance. In addition, thin film capacitors are often used in signal processing and filtering in communication systems, which can effectively remove noise in the signal and improve transmission quality. In the field of automotive electronics, thin film capacitors are used in engine management systems, airbag circuits, and in car entertainment systems to ensure circuit stability and safety. In medical equipment, such as electrocardiogram monitors and pacemakers, the high precision and stability of thin film capacitors make them key components that play an important role in monitoring and treating the health of patients.

MKP1839068632G Datasheet

MKP1839068632G Datasheet , Tape & Box (TB),MKP1839,-55°C ~ 100°C,Through Hole,Axial,DC Link, DC Filtering; High Pulse, DV/DT,±2%,0.217" Dia x 0.433" L (5.50mm x 11.00mm),PC Pins,250V,630V,68 pF,Polypropylene (PP), Metallized

MKP1839068632G Classification

Film Capacitors

Film capacitors are capacitors that use thin film materials as dielectric. This structure mainly consists of two layers of conductive metal foil, sandwiched with a thin film medium, which is usually made of polymer materials such as polyether esters, polypropylene, or polystyrene. The design principle is based on the storage of charges. When voltage is applied to both ends of the capacitor, positive and negative charges accumulate on two layers of metal foil, forming an electric field. Thin film capacitors are renowned for their high stability, low loss factor, and wide operating temperature range, and are particularly suitable for high-frequency circuits. In addition, due to its good self-healing ability, which can self recover after partial breakdown in the dielectric, it has a long service life and high reliability.

FAQ about Film Capacitors

  • 1. Is a film capacitor AC or DC?

    AC, DC
    Film capacitors can be used in both AC and DC circuits. According to the current type, film capacitors can be divided into DC film capacitors and AC film capacitors.
    DC film capacitors
    DC film capacitors are mainly used in DC circuits and have the following characteristics:
    Large capacity: has a higher capacitance.
    Low withstand voltage: the withstand voltage value is relatively low.
    Polarity: has positive and negative poles.
    Application scenarios: commonly used in motor drives, uninterruptible power supplies (UPS), solar inverters, electronic ballasts, small automotive motors, household appliances, etc.
    AC film capacitors
    AC film capacitors are mainly used in AC circuits and have the following characteristics:
    Small capacity: relatively small capacitance.
    High withstand voltage: high withstand voltage value.
    Pass AC, block DC: conduct electricity in AC circuits, equivalent to open circuits in DC circuits.
    Application scenarios: widely used in industrial AC power supplies, asynchronous motor starting and operation, uninterruptible power supplies (UPS) and output filters of photovoltaic inverters, etc.

  • 2. What is a paper film capacitor?

    Paper film capacitors are actually a conceptual error because "paper film capacitors" are not a standard type of capacitor. Based on the information provided, you may want to ask about paper capacitors and film capacitors.
    Paper capacitors
    Paper capacitors are capacitors that use paper as a dielectric. It consists of thin paper as the dielectric and aluminum foil as the electrode, which is wound into a cylindrical shape and then impregnated with a shell or epoxy resin. Paper capacitors have the following characteristics:
    Low cost: Paper capacitors are usually low-cost and suitable for mass production.
    Large loss: Due to its material properties, paper capacitors have large losses.
    Application scenarios: Mainly used for bypass, coupling, filtering, etc. in low-frequency circuits.

  • 3. Will the performance of film capacitors degrade?

    Yes
    The performance of film capacitors will degrade. The performance degradation of film capacitors is mainly due to their internal structure and material properties.
    Reasons for performance degradation
    Metal plating oxidation: During the capacitor manufacturing process, there is a trace amount of air between the film layers, which may be ionized under the action of the electric field to produce ozone. Ozone is a strong oxidant that oxidizes the metal plating to produce non-conductive metal oxides, resulting in a reduction in the plate area and a decrease in the capacitor capacity.

    Humid air: During the winding process of film capacitors, if the workshop environment is not properly controlled, there will be a large amount of humid air. These humid air will produce air ionization reactions when the capacitor is working, generating ozone, which further causes the capacitor capacity to decay.
    Poor quality materials: The film materials used are of poor quality, such as uneven evaporation and defects on the film, which will cause the capacitor capacity to decay.
