SS22/1

Vishay Semiconductor - Diodes Division SS22/1

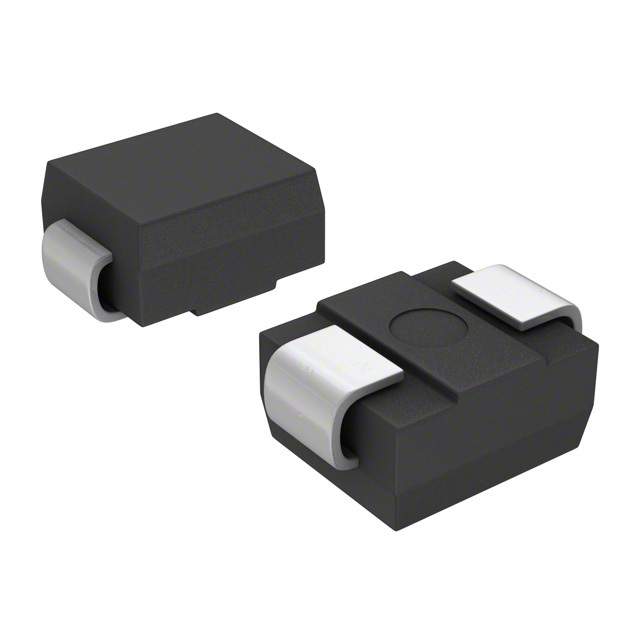

The picture is for reference only, please refer to the product specification

  • SS22/1
  • Vishay Semiconductor - Diodes Division
  • DIODE SCHOTTKY 20V 2A DO214AA
  • Diodes - Rectifiers - Single
  • SS22/1 Datasheet
  • DO-214AA, SMB
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4604
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is SS22/1

Vishay Semiconductor - Diodes Division Part Number SS22/1（Diodes - Rectifiers - Single）, developed and manufactured by Vishay Semiconductor - Diodes Division, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

SS22/1 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

SS22/1 Specifications

  • Part NumberSS22/1
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerVishay Semiconductor - Diodes Division
  • DescriptionDIODE SCHOTTKY 20V 2A DO214AA
  • PackageBulk
  • Series-
  • Mounting TypeSurface Mount
  • Package / CaseDO-214AA, SMB
  • Supplier Device PackageDO-214AA (SMB)
  • Diode TypeSchottky
  • Current - Average Rectified (Io)2A
  • Voltage - Forward (Vf) (Max) @ If500 mV @ 2 A
  • Current - Reverse Leakage @ Vr400 µA @ 20 V
  • Capacitance @ Vr, F-
  • Voltage - DC Reverse (Vr) (Max)20 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)-
  • Operating Temperature - Junction-65°C ~ 125°C

Application of SS22/1

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

SS22/1 Datasheet

SS22/1 Datasheet , Bulk,Surface Mount,DO-214AA, SMB,DO-214AA (SMB),Schottky,2A,500 mV @ 2 A,400 µA @ 20 V,20 V,Fast Recovery =< 500ns, > 200mA (Io),-65°C ~ 125°C

SS22/1 Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.

FAQ about Diodes - Rectifiers - Single

  • 1. What is a single rectifier diode?

    A single rectifier diode is an electronic component used to convert alternating current (AC) to direct current (DC), typically used in power supplies, chargers, and other circuits that require DC power.

  • 2. How to choose the appropriate rectifier diode?

    When making a choice, the following factors need to be considered:

    Current capacity: Determine the maximum current that the diode needs to handle.

    Reverse voltage: Ensure that the reverse voltage of the diode can withstand the highest voltage in the circuit.

    Forward voltage drop: A lower forward voltage drop can improve circuit efficiency.

    Recovery time: For high-frequency applications, choose fast recovery or Schottky diodes.

  • 3. What is the difference between a single rectifier diode and a bridge rectifier?

    A single rectifier diode can only rectify the positive half wave of AC power (half wave rectification), while a bridge rectifier composed of four diodes can rectify the positive and negative half waves of AC power (full wave rectification), with higher efficiency and smoother output.
