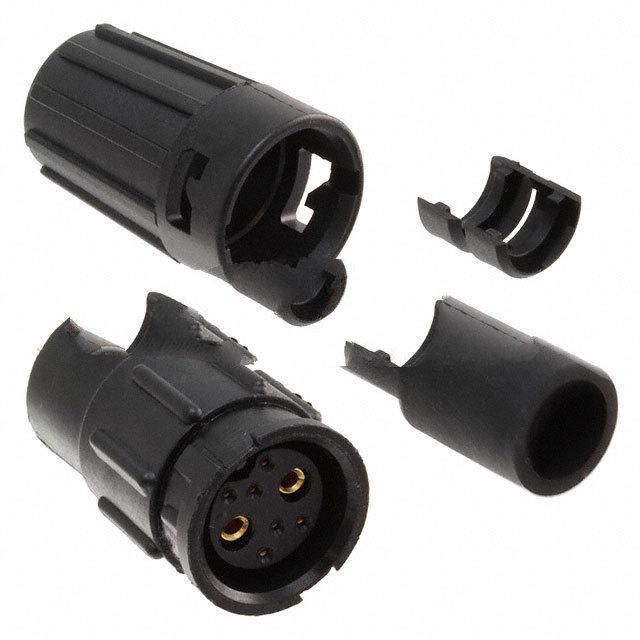

W6A82-8SG-528

Conxall/Switchcraft W6A82-8SG-528

The picture is for reference only, please refer to the product specification

  • W6A82-8SG-528
  • Conxall/Switchcraft
  • CONN PLUG FMALE 8POS GOLD SLDR
  • Circular Connectors
  • W6A82-8SG-528 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4941
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is W6A82-8SG-528

Conxall/Switchcraft Part Number W6A82-8SG-528（Circular Connectors）, developed and manufactured by Conxall/Switchcraft, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

W6A82-8SG-528 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

W6A82-8SG-528 Specifications

  • Part NumberW6A82-8SG-528
  • CategoryCircular Connectors
  • ManufacturerConxall/Switchcraft
  • DescriptionCONN PLUG FMALE 8POS GOLD SLDR
  • Package-
  • SeriesMini-Con-X?
  • FeaturesBackshell, Coupling Nut, UV Resistant
  • Mounting TypeFree Hanging (In-Line)
  • TerminationSolder Cup
  • Ingress ProtectionIP67 - Dust Tight, Waterproof
  • Current Rating2A, 10A
  • Voltage - Rated250V
  • Contact FinishGold
  • OrientationKeyed
  • Number of Positions8 (6 + 2 Power)
  • Connector TypePlug, Female Sockets
  • Fastening TypeBayonet Lock
  • Shell Material, FinishThermoplastic

Application of W6A82-8SG-528

Circular Connectors play an important role in several areas. In the aerospace field, circular connectors are an indispensable part of the electrical systems of aircraft, satellites and other aircraft, and are used to achieve high reliability connections between various system modules. In the field of industrial automation, with the rapid development of intelligent manufacturing, circular connectors are widely used in robots, automation equipment, control systems and other occasions to provide stable electrical connection solutions for industrial automation production. In addition, in the fields of Marine engineering, shipbuilding, new energy vehicles, medical equipment and other fields, circular connectors are also favored for their waterproof, dustproof, corrosion resistance and other characteristics.

W6A82-8SG-528 Datasheet

W6A82-8SG-528 Datasheet , Mini-Con-X?,Backshell, Coupling Nut, UV Resistant,Free Hanging (In-Line),Solder Cup,IP67 - Dust Tight, Waterproof,2A, 10A,250V,Gold,Keyed,8 (6 + 2 Power),Plug, Female Sockets,Bayonet Lock,Thermoplastic

W6A82-8SG-528 Classification

Circular Connectors

Circular Connectors are electrical connections with a circular interface shape. It is usually composed of two parts, plug and socket, through rotation or push and pull to achieve docking, so as to establish the transmission channel of electrical signals. Circular connectors are often designed with a focus on tightness, durability and multi-pin configurations to meet electrical connection needs in a variety of complex environments. Its shell is mostly made of metal or high-performance plastic materials, and the interior contains key components such as precision contact terminals, insulators and locking mechanisms to ensure stable and reliable connection.

FAQ about Circular Connectors

  • 1. What is a circular connector

    A circular connector is a cylindrical electronic connector with a circular mating surface. It belongs to the fifth category of the interconnection classification and is mainly used for interconnection between devices. The design of circular connectors includes many types, such as low-frequency circular connectors, RF coaxial connectors and audio connectors, etc., with a wide operating temperature range from -55℃ to +150℃.

  • 2. What are circular connectors used for

    Circular connectors are mainly used for power connection, signal transmission, mechanical connection, etc. It is a multifunctional electronic connector widely used in various electronic devices and application scenarios.

  • 3. What is the circular connector called

    Circular connectors are also called circular electrical connectors, sealed circular connectors, aviation plugs, waterproof connectors, etc. Different names for different usage environments: waterproof connectors, waterproof plugs; sealed circular connectors, etc.

  • 4. What are the materials of circular connectors?

    1. Metal: It has good mechanical properties and conductivity, and is used for contacts and housings.
    2. Plastic: Lightweight, good insulation, and able to resist corrosion by some chemicals, used for insulators and housings.
    3. Rubber: Has good elasticity and corrosion resistance, used for waterproofing and sealing.
