Fairchild Semiconductor 74LVT244WMX

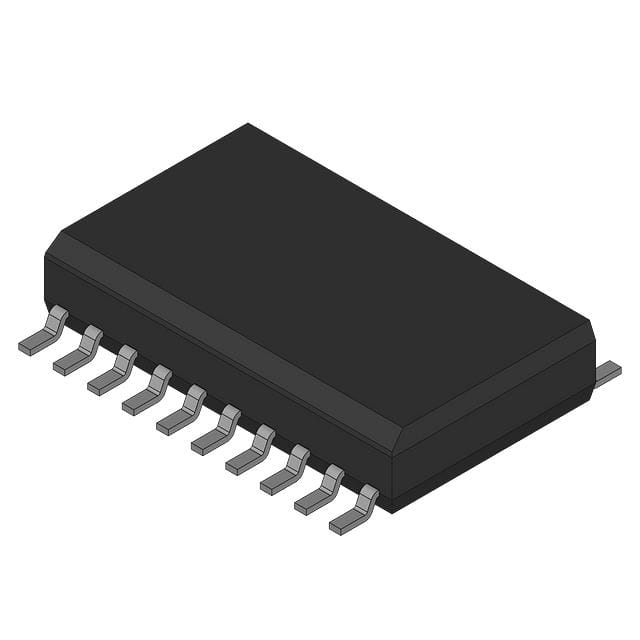

The picture is for reference only, please refer to the product specification
- 74LVT244WMX
- Fairchild Semiconductor
- IC BUFF/DVR TRI-ST DUAL 20SOIC
- Logic - Buffers, Drivers, Receivers, Transceivers
- 74LVT244WMX Datasheet
- 20-SOIC (0.295", 7.50mm Width)
- 20-SOIC (0.295", 7.50mm Width)
-
Lead free / RoHS Compliant - 1378
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 74LVT244WMX
Fairchild Semiconductor Part Number 74LVT244WMX（Logic - Buffers, Drivers, Receivers, Transceivers）, developed and manufactured by Fairchild Semiconductor, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
74LVT244WMX is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
74LVT244WMX Specifications
- Part Number74LVT244WMX
- CategoryLogic - Buffers, Drivers, Receivers, Transceivers
- ManufacturerFairchild Semiconductor
- DescriptionIC BUFF/DVR TRI-ST DUAL 20SOIC
- Package20-SOIC (0.295", 7.50mm Width)
- Series74LVT
- Voltage - Supply2.7 V ~ 3.6 V
- Operating Temperature-40°C ~ 85°C (TA)
- Mounting TypeSurface Mount
- Package / Case20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package20-SOIC
- Output TypePush-Pull
- Number of Elements2
- Current - Output High, Low32mA, 64mA
- Logic TypeBuffer, Non-Inverting
- Number of Bits per Element4
Application of 74LVT244WMX
74LVT244WMX Datasheet
74LVT244WMX Datasheet , 20-SOIC (0.295", 7.50mm Width),74LVT,2.7 V ~ 3.6 V,-40°C ~ 85°C (TA),Surface Mount,20-SOIC (0.295", 7.50mm Width),20-SOIC,Push-Pull,2,32mA, 64mA,Buffer, Non-Inverting,4
74LVT244WMX Classification
Logic - Buffers, Drivers, Receivers, Transceivers
FAQ about Logic - Buffers, Drivers, Receivers, Transceivers
-
1. What is a logic driver?
A logic driver is a driver that is used to implement operations such as reading, writing, and controlling logic devices. It is a computer science and technology term announced by the National Science and Technology Terminology Review Committee in 2018.
Logic drivers play an important role in computer systems. It determines the value of the output signal by the state of the input signal to realize specific logic functions. Logic drivers are widely used in computers, communication systems, digital electronic equipment and automation control. -
2. What are the most common logic ICs?
The most common logic IC is CMOS logic IC. CMOS logic IC is widely used in various electronic systems due to its low power consumption and low cost.
CMOS logic IC (complementary metal oxide semiconductor logic integrated circuit) combines p-channel and n-channel MOSFETs to achieve lower power consumption than traditional TTL (transistor-transistor logic). Although CMOS logic IC was slow at first, with the advancement of wafer manufacturing process, CMOS logic IC now provides higher operating speed and relatively low cost due to its improved manufacturing process.
In addition to CMOS logic IC, other common logic ICs include TTL, BiCMOS, etc. TTL logic IC was originally widely used because it provides higher current driving capability and operating speed, but with higher power consumption. BiCMOS logic IC combines the low power consumption of CMOS and the high current driving capability of bipolar transistors, but the manufacturing process is complex and the cost is high. -
3. What is the difference between a buffer and a transceiver?
The main difference between a buffer and a transceiver is that they have different functions and application scenarios. The buffer is mainly used for signal buffering and transmission, while the transceiver has a bidirectional data transmission function and contains a direction control circuit.
A buffer is an electronic component that is mainly used for signal buffering and transmission. It has high input impedance and low output impedance, which can ensure the integrity and stability of the signal. Buffers are often used in digital circuits to temporarily store data for processor processing or to coordinate between high-speed and low-speed devices.
A transceiver is a bidirectional device that allows data to flow in both directions. It not only has buffering and driving functions, but also contains direction control circuits so that data can be transmitted in either direction as needed. Transceivers are often used in applications that require bidirectional communication, such as backplanes and ribbon cables, where the signal is weak or needs to be transmitted over long distances.
