ABLIC U.S.A. Inc. S-1200B49-A6T1U

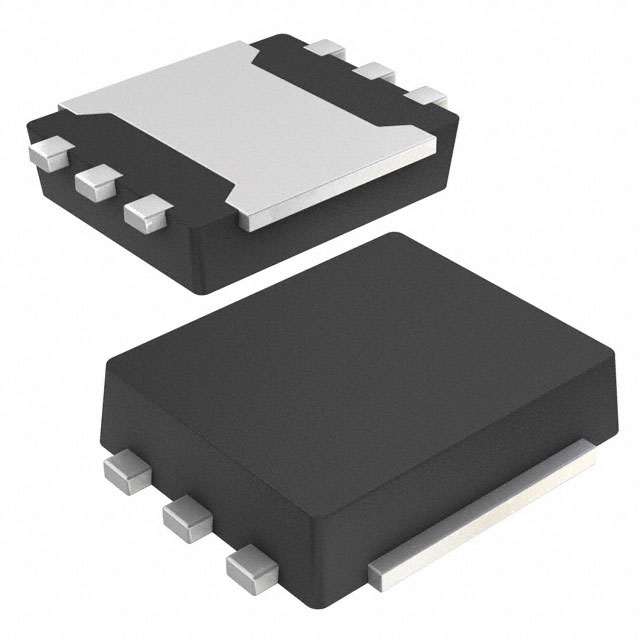

The picture is for reference only, please refer to the product specification
- S-1200B49-A6T1U
- ABLIC U.S.A. Inc.
- IC REG LINEAR 4.9V 150MA HSNT-6A
- PMIC - Voltage Regulators - Linear
- S-1200B49-A6T1U Datasheet
- 6-SMD, Flat Lead Exposed Pad
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 1768
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is S-1200B49-A6T1U
ABLIC U.S.A. Inc. Part Number S-1200B49-A6T1U（PMIC - Voltage Regulators - Linear）, developed and manufactured by ABLIC U.S.A. Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
S-1200B49-A6T1U is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
S-1200B49-A6T1U Specifications
- Part NumberS-1200B49-A6T1U
- CategoryPMIC - Voltage Regulators - Linear
- ManufacturerABLIC U.S.A. Inc.
- DescriptionIC REG LINEAR 4.9V 150MA HSNT-6A
- PackageTape & Reel (TR)
- SeriesS-1200
- Operating Temperature-40°C ~ 85°C (TA)
- Mounting TypeSurface Mount
- Package / Case6-SMD, Flat Lead Exposed Pad
- Supplier Device PackageHSNT-6A
- Output TypeFixed
- Voltage - Output (Min/Fixed)4.9V
- Voltage - Output (Max)-
- Current - Output150mA
- Output ConfigurationPositive
- Control FeaturesEnable
- Voltage - Input (Max)10V
- Number of Regulators1
- Voltage Dropout (Max)0.19V @ 100mA
- Current - Quiescent (Iq)1 µA
- Current - Supply (Max)40 µA
- PSRR65dB (1kHz)
- Protection FeaturesOver Current
Application of S-1200B49-A6T1U
S-1200B49-A6T1U Datasheet
S-1200B49-A6T1U Datasheet , Tape & Reel (TR),S-1200,-40°C ~ 85°C (TA),Surface Mount,6-SMD, Flat Lead Exposed Pad,HSNT-6A,Fixed,4.9V,150mA,Positive,Enable,10V,1,0.19V @ 100mA,1 µA,40 µA,65dB (1kHz),Over Current
S-1200B49-A6T1U Classification
PMIC - Voltage Regulators - Linear
FAQ about PMIC - Voltage Regulators - Linear
-
1. What is a linear regulator?
A linear regulator is an electronic device that is primarily used to maintain a specified output voltage stable when the input voltage or load conditions change. It is an important component in electronics that acts as a buffer to protect the components of the circuit from damage. A linear regulator works by using an active device (such as a BJT or MOSFET) controlled by a high-gain amplifier, using the variable conductivity of the active pass device to maintain the output voltage. This regulator acts as a voltage divider to produce a regulated output voltage, where a linear element (such as a resistive load) is used to regulate the output voltage. The transistor stays in its active region of operation during voltage regulation. To maintain a constant output voltage, the internal resistance can be varied, providing a variable resistance by using a transistor controlled by the amplifier feedback loop.
A linear regulator is also called a buck converter, where the output voltage is always -
2. When should a linear regulator be used instead of a switching regulator?
In low-power and low-frequency application scenarios, a linear regulator should be used instead of a switching regulator.
Linear regulator Suitable for low-power and low-frequency applications, with simple circuit structure, low noise and good stability. They control the output voltage of the transistor through a current amplifier to keep the output voltage stable. This working mode makes linear regulators perform well in low-power and low-frequency applications, although they are less efficient and generate more heat, and their application range is limited. In contrast, switching regulators use high-frequency pulse modulation technology to convert input voltage into a stable output voltage. They have the advantages of high efficiency, small size and fast response, and are suitable for high-power and high-frequency applications. Therefore, when the application requirements are not the main considerations for circuit complexity and cost, but have high requirements for the stability and -
3. Which is better, switching power supply or linear regulator?
Switching power supply and linear regulator each have their advantages and disadvantages, and choosing which one is better depends on the specific application requirements.
The main advantages of switching power supply include:
High efficiency: The conversion efficiency of switching power supply can reach 90%~95%, which is much higher than the 30% or so of linear regulator.
Small size and light weight: Due to the high efficiency and high-efficiency transformer of switching power supply, large heat sink can be omitted, and high-frequency transformer replaces power frequency transformer, greatly reducing volume and weight.
Wide voltage regulation range: The output voltage of switching power supply can compensate for the change of input voltage by adjusting the duty cycle to ensure stable output voltage.
Various circuit forms: Designers can design switching power supplies that meet the needs according to different application scenarios.
However, switching power supplies also have so
