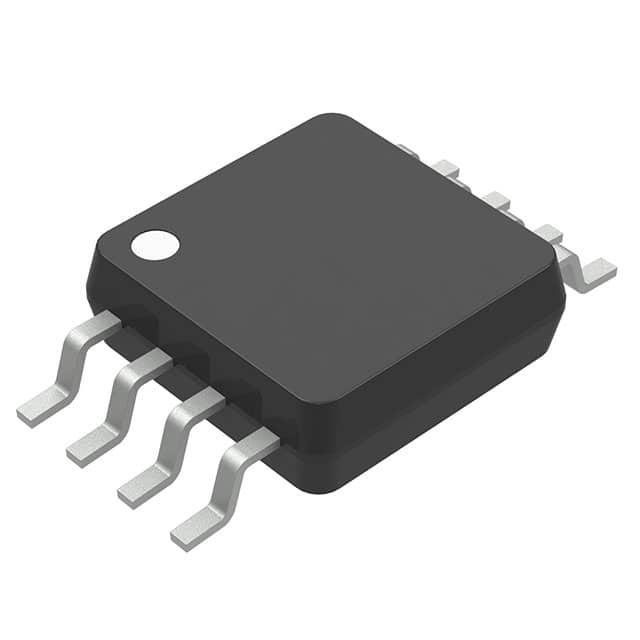

Microchip Technology MCP6292-H/MS
The picture is for reference only, please refer to the product specification
- MCP6292-H/MS
- Microchip Technology
- IC OPAMP GP 2 CIRCUIT 8MSOP
- Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
- MCP6292-H/MS Datasheet
- 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width)
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 3763
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is MCP6292-H/MS
Microchip Technology Part Number MCP6292-H/MS（Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps）, developed and manufactured by Microchip Technology, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
MCP6292-H/MS is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
MCP6292-H/MS Specifications
- Part NumberMCP6292-H/MS
- CategoryLinear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
- ManufacturerMicrochip Technology
- DescriptionIC OPAMP GP 2 CIRCUIT 8MSOP
- PackageTape & Reel (TR)
- Series-
- Operating Temperature-40°C ~ 150°C (TA)
- Mounting TypeSurface Mount
- Package / Case8-TSSOP, 8-MSOP (0.118\", 3.00mm Width)
- Supplier Device Package8-MSOP
- Current - Supply1mA (x2 Channels)
- Output TypeRail-to-Rail
- Number of Circuits2
- Voltage - Supply, Single/Dual (±)2.4V ~ 6V
- Current - Output / Channel25 mA
- -3db Bandwidth-
- Amplifier TypeGeneral Purpose
- Current - Input Bias1 pA
- Voltage - Input Offset3 mV
- Slew Rate7V/µs
- Gain Bandwidth Product10 MHz
Application of MCP6292-H/MS
MCP6292-H/MS Datasheet
MCP6292-H/MS Datasheet , Tape & Reel (TR),-40°C ~ 150°C (TA),Surface Mount,8-TSSOP, 8-MSOP (0.118\", 3.00mm Width),8-MSOP,1mA (x2 Channels),Rail-to-Rail,2,2.4V ~ 6V,25 mA,General Purpose,1 pA,3 mV,7V/µs,10 MHz
MCP6292-H/MS Classification
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
FAQ about Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
-
1. What is the difference between an instrumentation amplifier and an operational amplifier?
Instrumentation amplifiers integrate multi-stage operational amplifiers for precise amplification of differential signals, while operational amplifiers are more versatile and can perform a wide range of analog signal processing tasks. Instrumentation amplifiers have higher input impedance and better common mode rejection.
-
2. How to choose the right instrumentation amplifier?
The input common-mode voltage range, gain-bandwidth product, noise performance, power consumption, temperature drift, and common-mode rejection ratio (CMRR) should be considered when selecting an instrumentation amplifier to ensure that it meets the accuracy requirements of a particular application.
-
3. Why do buffer amplifiers have high input impedance and low output impedance?
A high input impedance ensures that no load is applied to the preamplifier circuitry, preventing signal degradation, while a low output impedance provides a large driving capacity, ensuring that the signal can be passed on to subsequent circuits without loss.
